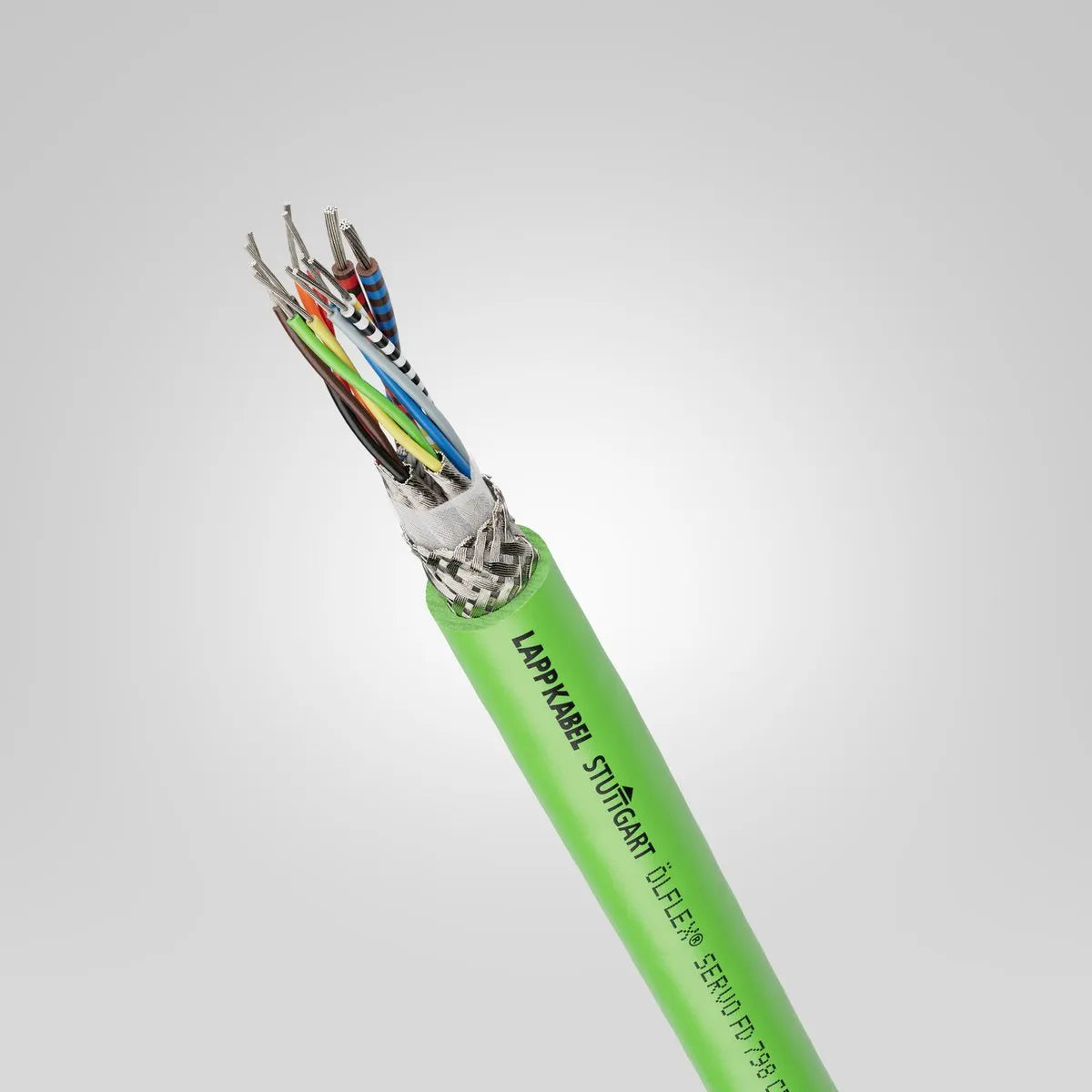

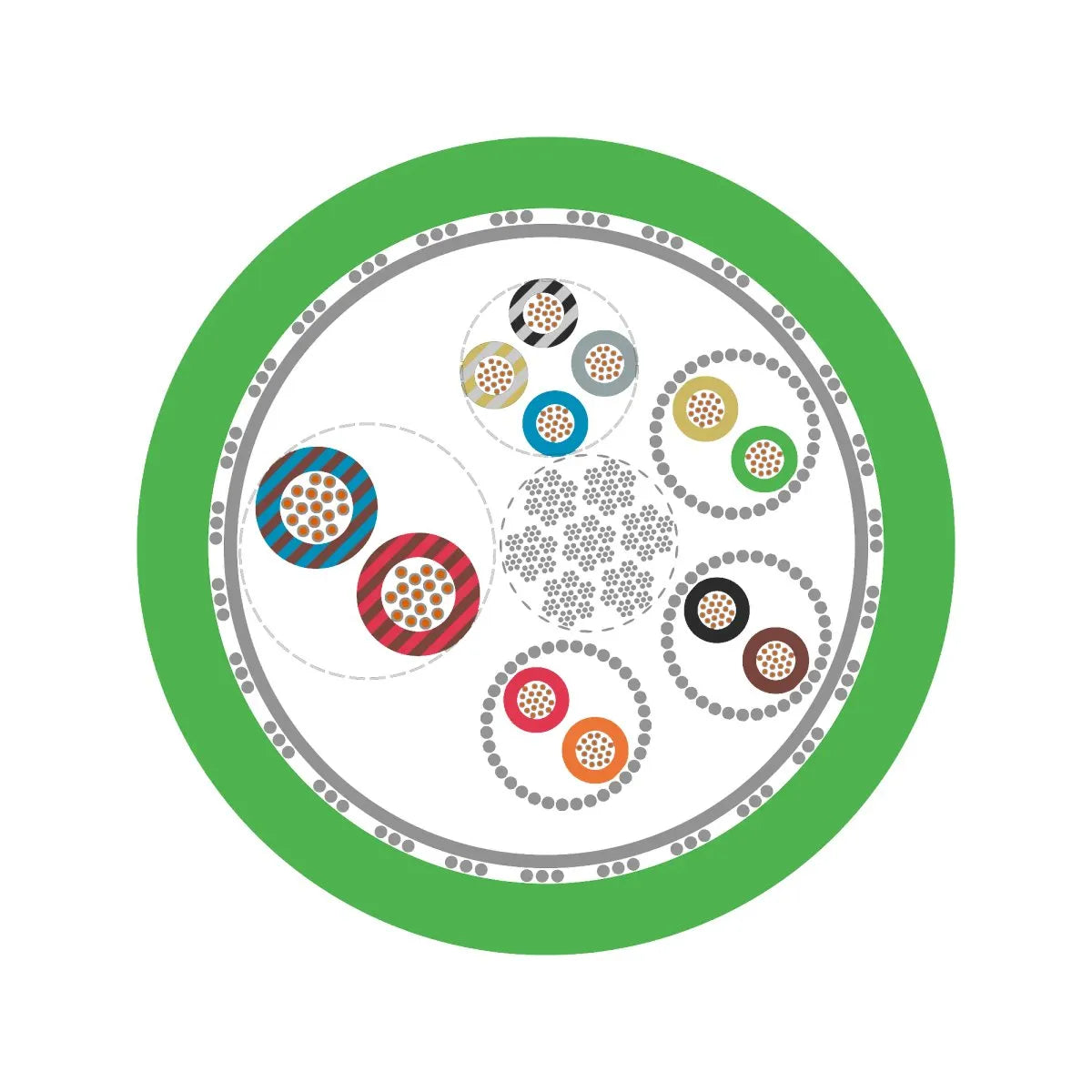

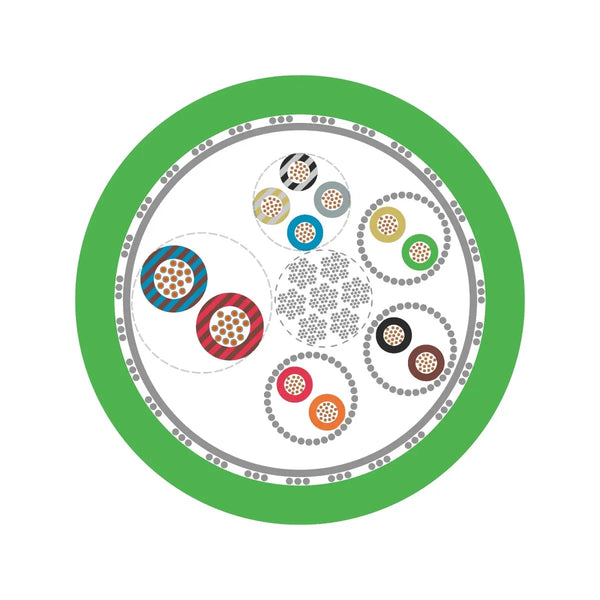

LAPP ÖLFLEX® SERVO 798CP (4x1+4x2x0,14+(4x..))

PRA000036122

Brand ÖLFLEX®
Product Type Encoder Cable
Weight 175 kg/km
Copper Index 103,000 kg/km
Copper Index (lb) 692,132 lb/10,000 ft
Performance Class Extended-Line
Nominal Voltage 30 V AC rms / DC according to IEC
Signal Pair Nominal Voltage 30 V AC rms / DC according to IEC
Rated Voltage 300 V AC rms / DC according to CSA AWM
300 V AC rms / DC according to UL AWM
Test Voltage (Conductor/Conductor) 1.5 kV
Test Voltage (Core/Screening) 0.75 kV
Current Rating According To VDE 0891-1
