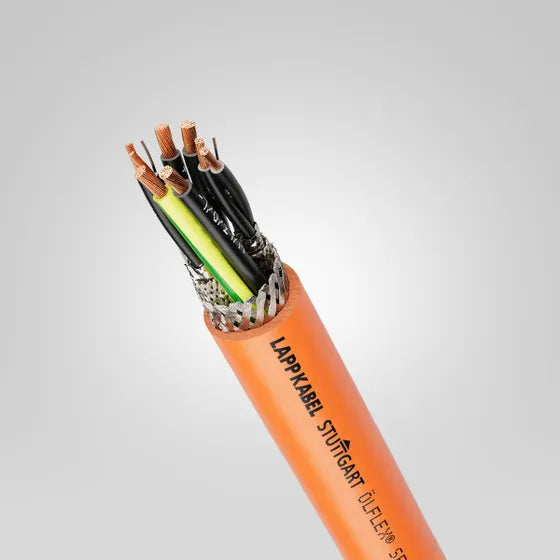

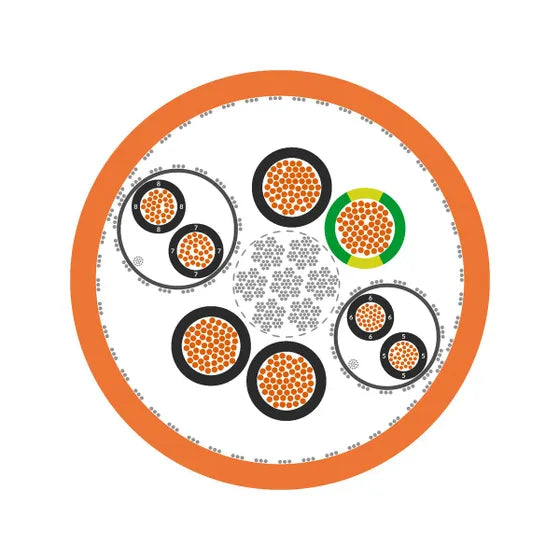

LAPP ÖLFLEX® SERVO 7DSL 4G1,5+(2x1)+(2x22AWG)

PRA000036067

Brand ÖLFLEX®
Product Type Servo cable
Weight 250 kg/km
Copper Index 140,000 kg/km
Copper Index (lb) 940,660 lb/10,000 ft
Nominal Voltage U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage (Power Cores) U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage (Control Cores) U0/U: 0,6/1 kV AC rms according to IEC
Signal Pair Nominal Voltage 300 V AC rms / DC according to IEC
Rated Voltage 1000 V AC rms according to UL AWM
1000 V AC rms according to cRU AWM
300 V AC rms / DC according to UL AWM
300 V AC rms / DC according to cRU AWM
Test Voltage 4 kV
Current Rating According to VDE 0891-1
Nominal Characteristic Impedance 110 Ω
Maximum Transmission Length 100 m
