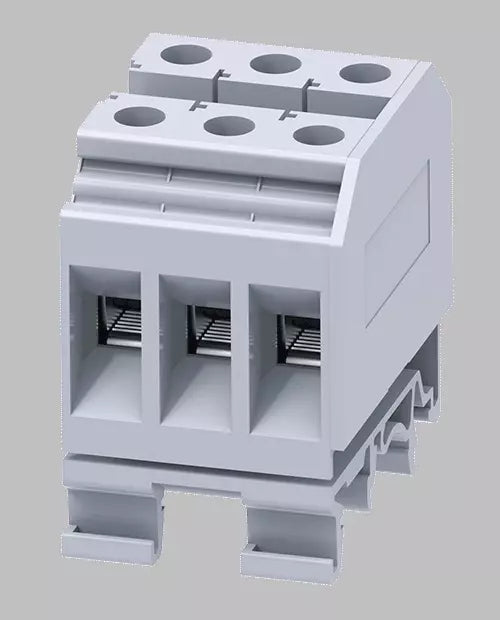

Connectwell Modular Distribution Blocks with 25 sq.mm Output connections and 50 sq.mm Bolt Type Input Connection

Write a review
Rs. 0.00

Rated Voltage 800 V
Rated Current - Input Side 150 A
Rated Current - Output Side 75A
Tightening Torque - Input Side 6 Nm
Tightening Torque - Output Side 2 Nm
Housing Material Polyamide
Product Function Modular Distribution Blocks with Bolt Type Input Connection
Wire Entry Orientation Side Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Screw Size M5
Stud Size M8
Operated by screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
