SICK Accessories: Further accessories BTL70-04000

SAS00004091

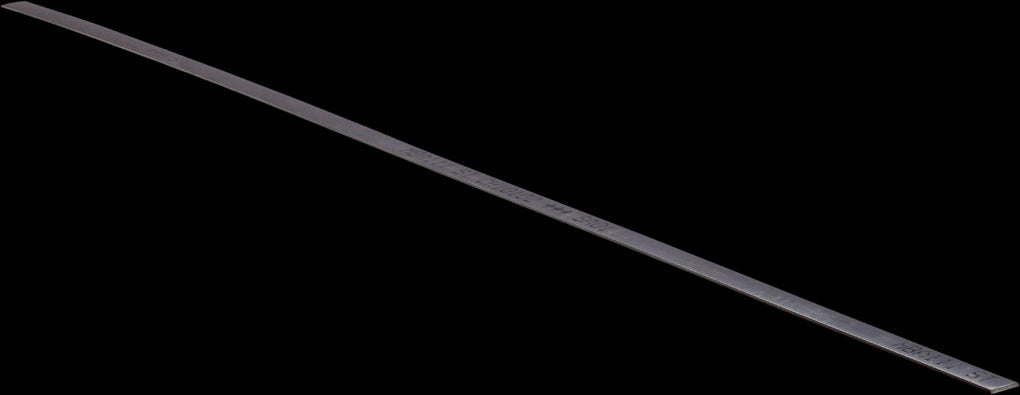

Accessory group Magnets
Description Magnetic tape length: 4.08 m, magnetic tape width: 10 mm, magnetic tape material: 17410 hard ferrite 9/28 P, substrate tape material: stainless steel, period length 2 mm, operating temperature range: –20 °C ... 100 °C, storage temperature range: –30 °C ... 100 °C, temperature coefficient: (11 ± 1) μm/K/m
Material Covering tape: V2A, magnetic tape: 17410 hard ferrite 9/28 P, substrate tape: spring steel (11± 1) µm/K/m
Temperature resistance min ... max –20 °C ... +100 °C
Dimensions (W x H x L) 10 mm x 4.08 m
