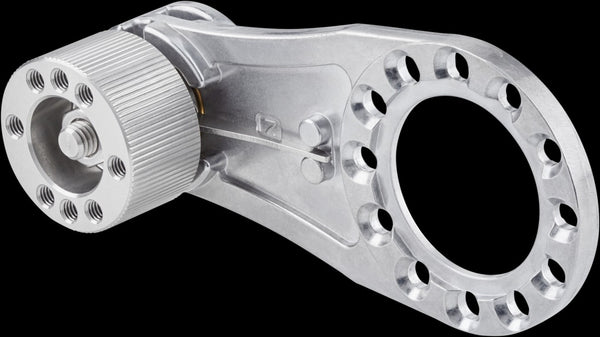

SICK Accessories: Mounting systems BEF-MWS075-ARM

SAS00004513

Accessory group Other mounting accessories
Accessory family Modular measuring wheel system
Suitable for
  • MWS075, encoder for mounting:
    • Ø 60 mm face mount flange encoder with mechanical type "S4" = Ø10 mm x 19 mm, and adapter flange (part no.: 2145869), DBS60, DFS60, AFS60, AFM60
    • Ø 36 mm face mount flange encoder with mechanical type "SC" = Ø10 mm x 24 mm, and adapter flange (part no.: 2145180)
    • Ø 50 mm face mount flange encoder with mechanical type "S5" = Ø8 mm x 15.5 mm, no adapter flange required, DBS50
  • MWS075 mounting bracket (BEF-WF-MWS075, 2145906)
  • Attachable measuring wheels: measuring wheel: Ø10 mm, measuring wheel circumference: 200 mm & 300 mm
Items supplied
  • MWS120 spring arm (part number: 2118239)
  • 3 pcs. M4 x 16 cylinder head screws for adapter or encoder mounting
Description Spring arm for linear measurement with contact, spring contact pressure manually adjustable without tools in 6 increments of 4¬N from 0 N ... 24¬N, can be combined with separately available encoders and measuring wheels.
