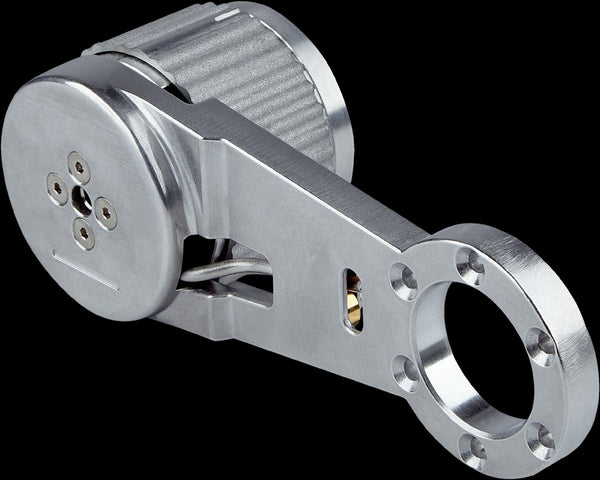

SICK Accessories: Mounting systems BEF-MWS120-S01

Write a review
Rs. 0.00

Accessory group Other mounting accessories
Accessory family Modular measuring wheel system
Suitable for MWS120, direct mounting Ƙ 60 mm face mount flange encoder with mechanical shaft design ā€œS4ā€ = Ƙ 10 mm, DBS60, DFS60, AFS60 AFM60. Ƙ 36 mm encoders such as AHS/AHM36 can be mounted with an adapter flange (part no.: 2072298).
Items supplied Spring arm, M6 serrated lock washer, M6 counter nut, Positioning disc, Measuring wheel with O-ring surface, Adapter flange, Mounting bracket (optional, art. no. 2084709), rod, longer screw for mounting on the rod
Description Spring arm for linear measurement with contact, spring contact pressure manually adjustable without tools in 6 increments of 4 N from 0 ... 24 N, can be combined with separately available encoders and measuring wheels.
Specialty Assembled mounting rod, MWS120-ARM without adapter plate
