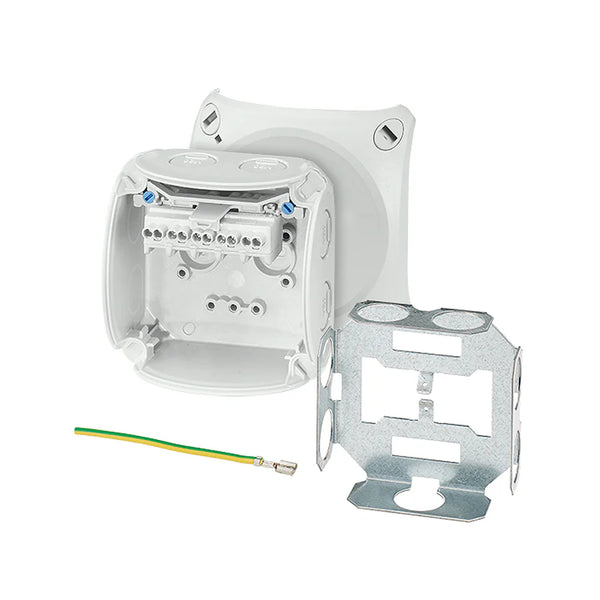

HENSEL | DK 0604 U | Cable Junction Boxes IP 66/67 With PE Inlay

DK 0202 U

• 0.75-2.5 mm², Cu 3~
• Terminal with 2 clamping units per pole
• 5-pole per pole 8 x 0,75-1 mm² r / f, 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 2 x 4 mm² r / f
• With patented PE inlay to connect the armours of SWA cables
• With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6.0-15.0 mm
• Lid fasteners sealable without accessories
• Retaining strap and external brackets for wall fixing included
• Colour: grey, RAL 7035
• To close opened membranes use grommets type EDK. Degree of protection = IP 66.
