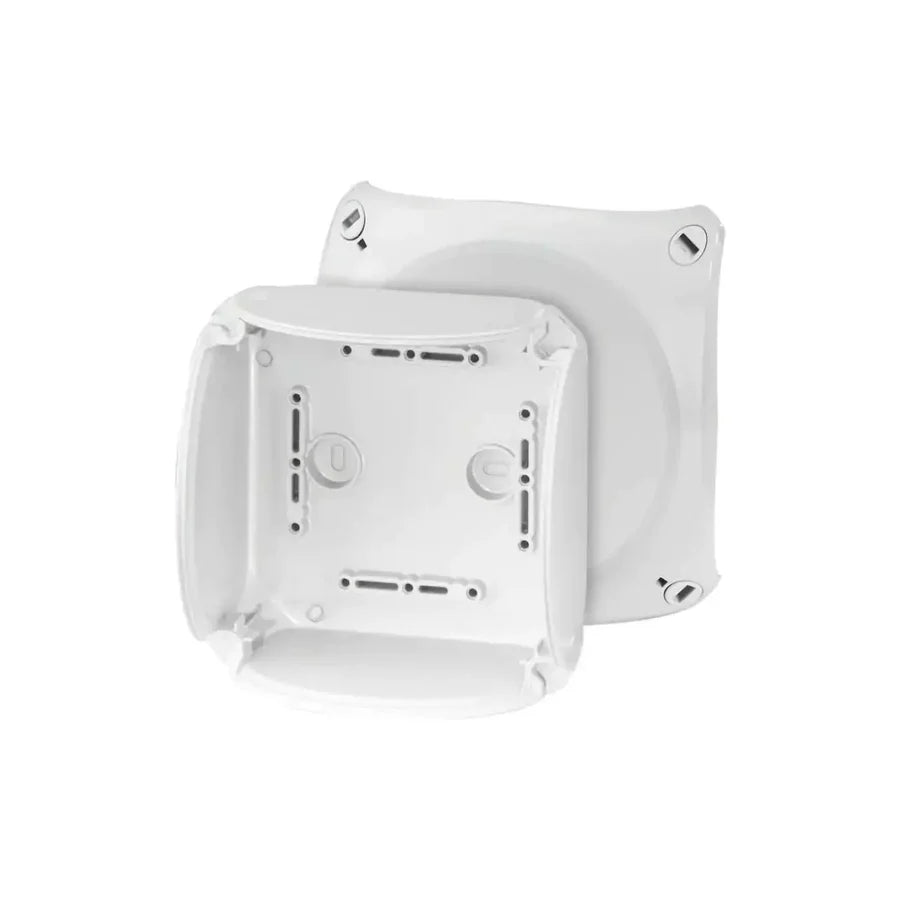

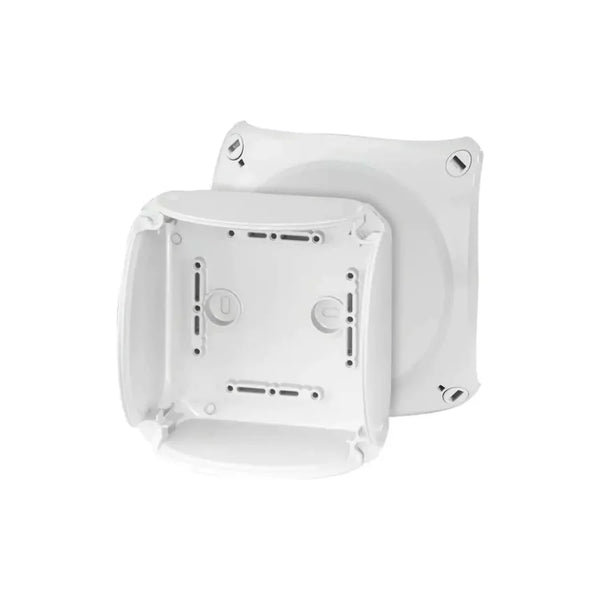

HENSEL | KF 0600 H | Cable Junction Box IP 66/67/69

Write a review
Rs. 1,024.24

Wall Thickness of the Bottom Part 2.0 mm
Rated Insulation Voltage Ui = 1000 V A.C./D.C.
Material PC-GFS (polycarbonate)
Degree of Protection IP 66 / IP 67 / IP 69
IP 67 Temporary submersion
IP 69 Water pressure max. 100 bar, water temperature max. 80 Ā°C, distance ā‰„ 0.15 m
Mounting Width 102 mm
Mounting Height 102 mm
Max. Installation Depth 62 mm
Width 130 mm
Height 130 mm
Depth 77 mm
Weight 0.194 kg
Compliance IEC 60670-22, DNV GL - Certificate No: TAE00000EE
