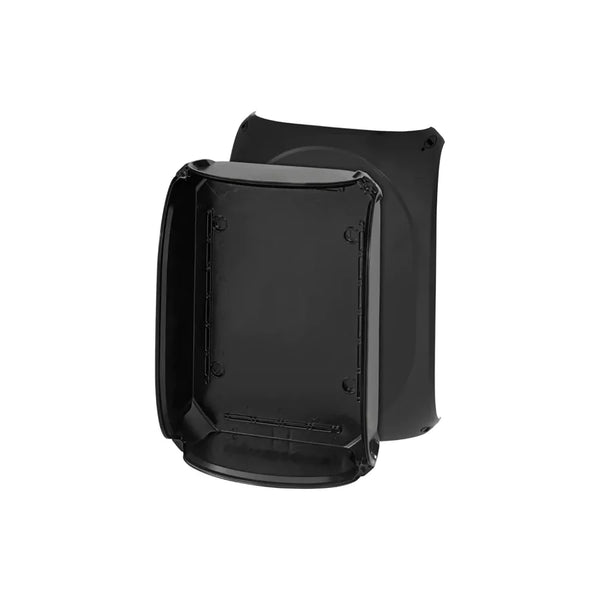

HENSEL KF 2500 C | Cable Junction Box IP 66/67/39

Write a review
Rs. 3,001.92

Wall Thickness of the Bottom Part 2.7 mm
Rated Insulation Voltage Ui = 1000 V A.C./D.C.
Material PC-GFS (Polycarbonate)
Degree of Protection IP 66 / IP 67 / IP 69
IP 67 Temporary submersion
IP 69 Water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Mounting Width 220 mm
Mounting Height 170 mm
Max. Installation Depth 96 mm
Width 255 mm
Height 205 mm
Depth 112 mm
Weight 0.65 kg
In Accordance With IEC 60670-22
DNV GL - Certificate No: TAE00000EE

Out of stock
