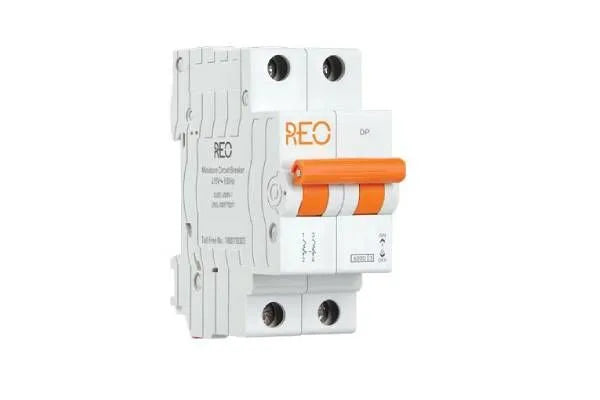

Havells 16 A DP C MCB

SUA00009070

Rated Frequency: 50 Hz
Dimensions: 84 mm x 60.2 mm x 17.7 mm
Rated Current: (6, 10, 16, 20, 25, 32, 40, 63) A
Type Or Series: 6 A - 63 A, C-Curve
Terminal Capacity (Maximum): 25 mm²
Shock Resistance: 40 mm free fall
Rated Short Circuit Breaking Capacity: 6 kA
Rated Insulation Voltage: 690 V
Rated Impulse Voltage: 4 kV
Protection Class: IP20
Operating Temperature: -5 °C to 50 °C
No. of Poles: 1P, 1P+N, 2P, 3P+N, 4P
Magnetic Release Setting: (5 - 10) In - C Curve
Installation Position: Vertical / Horizontal
Humidity: 95 % RH
Energy Limit Class: 3
