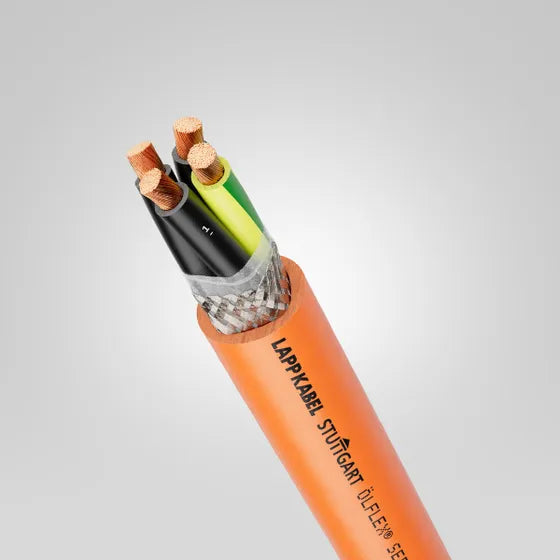

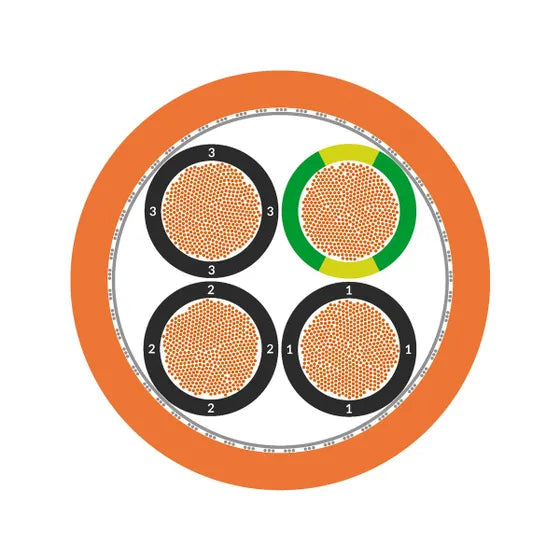

LAPP ÖLFLEX® SERVO FD 796 CP 4G1+(2x1,0)

PRA000036099

Brand ÖLFLEX®
Product Type Servo Cable
Weight 174 kg/km
Copper Index 106.700 kg/km
Copper Index (lb) 716.995 lb/10,000 ft
Performance Class Extended-Line
Nominal Voltage U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage Power Cores U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage Control Cores U0/U: 0,6/1 kV AC rms according to IEC
Rated Voltage 1000 V AC rms according to CSA AWM
1000 V AC rms according to UL AWM
Test Voltage Conductor/Conductor 4 kV
Test Voltage Core/Screening 4 kV
Power Core Test Voltage 4 kV
Test Voltage Control Cores 4 kV
Current Rating According to VDE 0298-4
