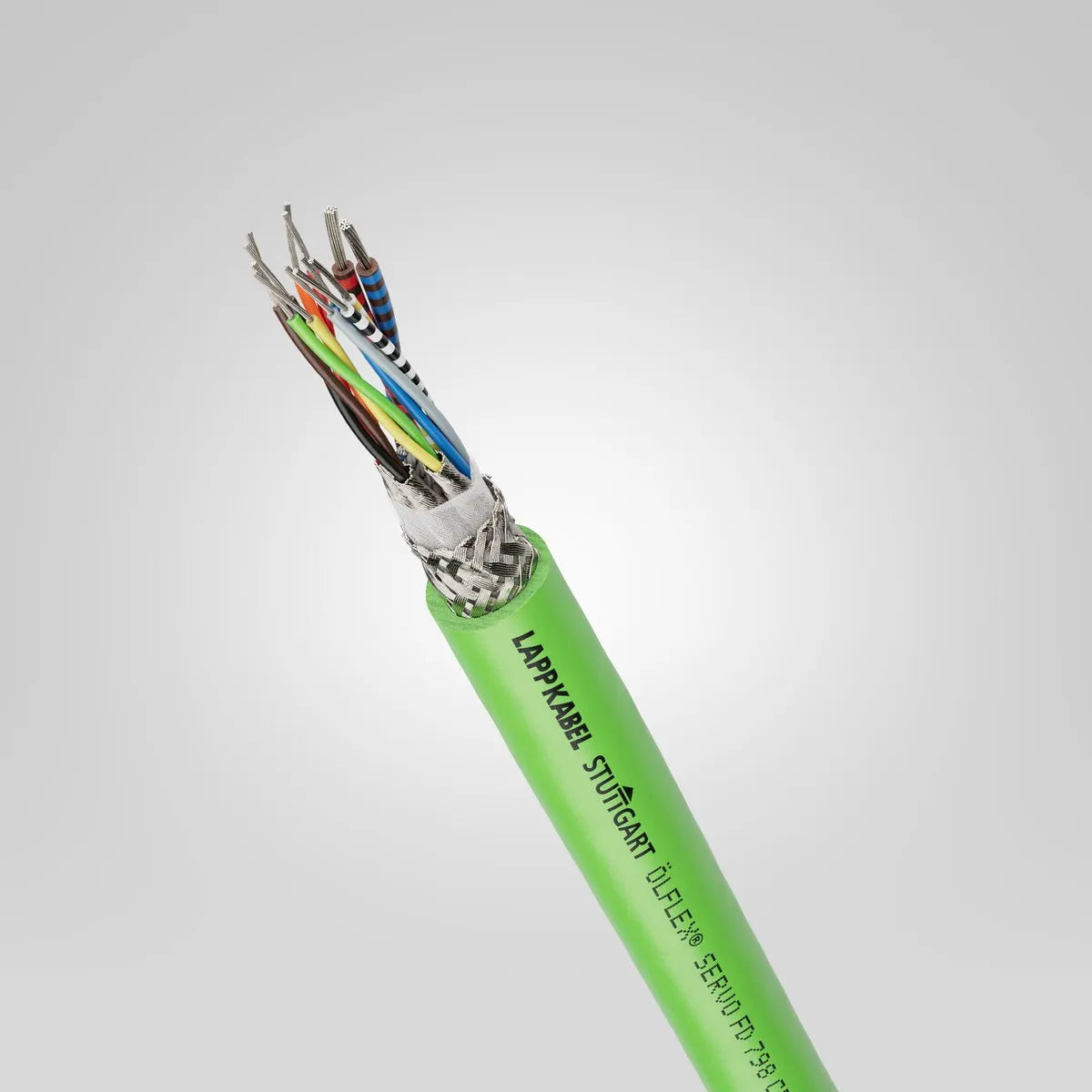

LAPP ÖLFLEX® SERVO FD 798 CP (2x2x0,18)

PRA000036120

Brand ÖLFLEX®
Product Type Encoder Cable
Weight 47 kg/km
Copper Index 24,000 kg/km
Copper Index (lb) 161,273 lb/10,000 ft
Performance Class Extended-Line
Nominal Voltage 30 V AC rms / DC according to IEC
Signal Pair Nominal Voltage 30 V AC rms / DC according to IEC
Rated Voltage 30 V AC rms / DC according to UL AWM
30 V AC rms / DC according to CSA AWM
Test Voltage (Conductor/Conductor) 1.5 kV
Test Voltage (Core/Screening) 0.75 kV
Current Rating According To VDE 0891-1
