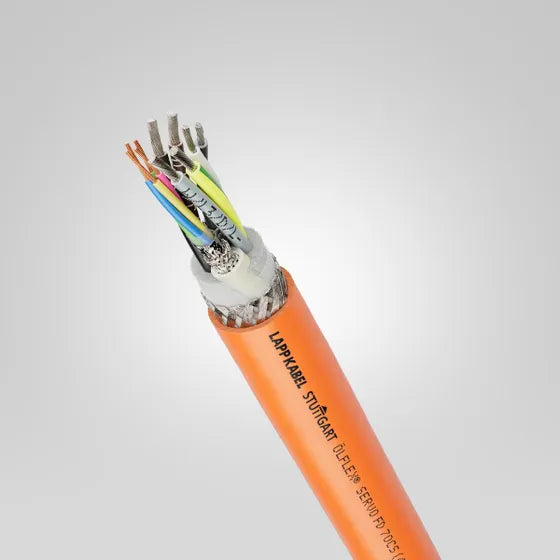

LAPP ÖLFLEX® SERVO FD 7OCS (4G0,75+(2x0,5)+(4x

PRA000036018

Brand ÖLFLEX®
Product Type Servo Cable
Weight 303 kg/km
Copper Index 115,000 kg/km
Copper Index (lb) 1411.142 lb/10,000 ft
Performance Class Extended-Line
Nominal Voltage U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage (Power Cores) U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage (Control Cores) U0/U: 0,6/1 kV AC rms according to IEC
Signal Pair Nominal Voltage U0/U: 300/300 V AC rms according to IEC
Rated Voltage 1000 V AC rms according to UL AWM
1000 V AC rms according to cRU AWM
Test Voltage (Conductor/Conductor) 4 kV
Test Voltage (Core/Screening) 2 kV
Power Core Test Voltage 4 kV
Test Voltage (Control Cores) 4 kV
Current Rating According to VDE 0891-1
Nominal Characteristic Impedance 100 Ω
