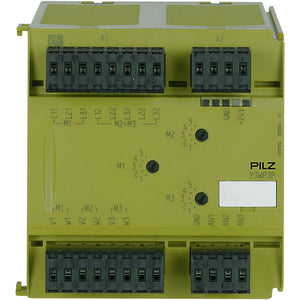

PILZ P3WP3P C/10A/230VAC

SUA00002603

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption (DC)2.5 W
Max. Device Circuit BreakerMax. conductor cross section
Measuring Circuit
U Meas. Range (Analogue Input)230 V
I Meas. Range (Analogue Input)0 - 10 A
Environmental Data
Climatic SuitabilityEN 60068-2-78
Ambient Temperature0 - 60 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 61000-6-2
  • EN 61000-6-4
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Mechanical Data
Mounting PositionAny
Housing Material (Lower Section)PPO UL 94 V0
Housing Material (Front Plate)ABS UL 94 V0
Connection TerminalSpring-loaded terminal
Terminal StylePlug-in
Flexible Conductor Cross-Section (AWG)22 - 12 AWG
Height Dimension90 mm
Width Dimension94 mm
Depth Dimension121 mm
Net Weight410 g
Gross Weight465 g
