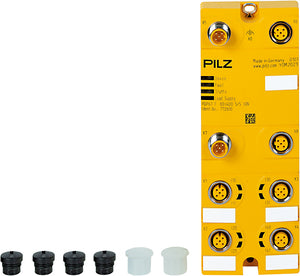

PILZ PDP67 F 8DI4DO 5/5 ION

SUA00002722

Technical Data
Electrical Data
Purpose of U1Supply
Supply voltage (V)24 V
Type of supply voltage U1DC
Purpose of U2Load supply
Supply voltage 2 (V)24 V
Type of supply voltage U2DC
Tolerance of U2-30 % / +25 %
Max. device circuit breaker10 A
Inputs
Number of inputs8
DC voltage at input24 V
Input type to EN 61131-21, 3
Potential isolation inputYes
Semiconductor Outputs
Function of S/C outputTest pulse output, 24 VDC output, Standard output
DC voltage at output24 V DC
Potential isolation of S/C OYes
S/C output short circuit proofYes
Perm. load 1pole Output
  • Resistive
  • Inductive
  • Capacitive
Environmental Data
Climatic suitability toEN 60068-2-78
Ambient temperature standardEN 60068-2-14
Ambient temperature-30 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Perm. operating height ASL2000 m
EMC to standard
  • EN 61000-4-8
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to standardEN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toIEC 60664-1
Pollution degree clear. & creep.2
Protection type standardEN 60529
Potential Separation
Potential isolation 1 betweenInput and internal bus voltage
Type of potential isolation 1Basic insulation
Potential isolation 2 betweenSC output and internal bus voltage
Type of potential isolation 2Basic insulation
Mechanical Data
Housing materialPBT Valox 855
Housing material codePC
Connection terminalM12
Terminal styleScrew interlocked
Height dimension162 mm
Width dimension60 mm
Depth dimension30 mm
Net weight315 g
Gross weight332 g
