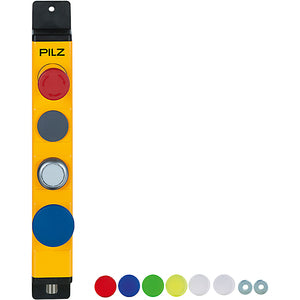

PILZ PITgb VMCE

SUA00003590

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC12 W
Min. Contact Current1 mA
Emergency Stop
Number of E-STOP (N/C)2
Release Type Emergency StopTurn release
Switch Capacity E-STOP (to standard)EN 60947-5-1
Contact Material E-STOPAg
Push Button
Contact Material PushbuttonAg
PILZ Push ButtonYes
Switch Capacity Pushbutton (to standard)EN 60947-5-1
Environmental Data
Ambient Temperature-20 - 60 °C
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r. h. at 40 °C
Vibration to StandardEN 60947-5-2
Shock to Standard30g
Clearance & Creepage Distance (to standard)EN 60947-1
Overvoltage CategoryIII
Pollution Degree Clearance & Creepage3
Protection Type, HousingNot Provided
UL Enclosure TypeType 1
Mechanical Data
Mounting PositionAny
Connection TypeM12, 12-pin male
Housing MaterialZn
Height Dimension293 mm
Width Dimension40 mm
Depth Dimension40 mm
Net Weight800 g
Gross Weight1200 g
