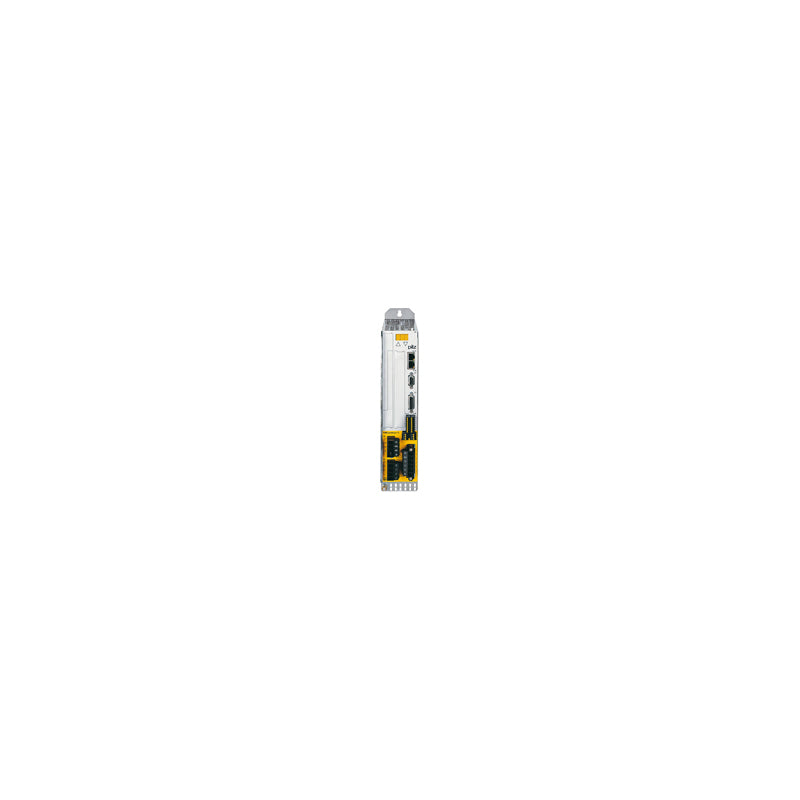

PILZ PMCprotego D.12/000/0/0/2/208-480VAC

SUA00003200

Technical Data
Electrical Data
Purpose of phase range
  • Mains supply
Supply voltage (V)
  • 208 - 480 V
Supply voltage with phases
  • 3 x 208 … 3 x 480 V
Type of supply voltage range
  • AC
Type of supply voltage U1
  • AC
Purpose of U2
  • Supply
Supply voltage 2 (V)
  • 24 V
Type of supply voltage U2
  • DC
Tolerance U2 with brake
  • +15 %
Tolerance U2 without brake
  • +15 %
Power Section
Max. switch-on frequency o/p
  • 30/h
Cont. outp. curr. at 3x208 V
  • 12 A
Cont. outp. curr. at 3x230 V
  • 12 A
Cont. outp. curr. at 3x400 V
  • 12 A
Cont. outp. curr. at 3x480 V
  • 12 A
Peak current for 2 s
  • 24 A
Peak current for 5 s
  • 24 A
Pulse frequ. inverted rectif.
  • 8 kHz
V range at intermediate circ.
  • 900 V DC
STO-ENABLE
Number of STO-Enables
  • 2
Input Resolver
Resolver connector type
  • 9-pin D-Sub female connector
Input SinCos Encoder, Incremental Encoder
Connector type encoder/incr.en
  • 15-pin D-Sub female connector
Analog Inputs
Number of analogue inputs
  • 2
Type of analogue inputs
  • Voltage
Signal range analog input
  • -10 - 10 V
Resolution of analogue inputs
  • 16 Bit
Inputs
Number of digital inputs
  • 4 - 6
Signal level at input at 0
  • -3 - +5 VDC
U input to EN 61131-2 Type 1
  • 24 V DC
Potential isolation inputs
  • Yes
Semiconductor Outputs (Standard)
Number of auxiliary outputs
  • 2
Galv. isol. n/safe SC O
  • Yes
Ethernet Interface
Connector type ETHERNET int.
  • RJ45
CANopen Interface
Number of CANopen interfaces
  • 1
Serial Interface
Number of RS 232 interfaces
  • 1
Communication Interfaces
Connector type RS RS232 i/f
  • 9-pin D-Sub male connector
Environmental Data
Ambient temperature standard
  • DIN EN 60721-3-3
Ambient temperature class
  • 1K4
  • 3K3
Ambient temperature
  • 0 - 40 °C
Ambient temp. derating
  • 40 - 55 °C
Power derating
  • 2.5 %/K
Storage temperature standard
  • DIN EN 60721-3-1
Storage temperature change
  • 20 K/h
Climatic suitability standard
  • DIN EN 60721-3-3
Humidity rating
  • 85 % r. h.
Humidity class
  • 3K3
Condensation permitted?
  • Not permitted
Perm. operating height ASL
  • 1000 m
Perm. op. height at 1.5% derat
  • 1000 - 2500 m ASL
Power derating per 100m
  • 1.5 %/100 m
EMC to standard ...
  • EN 61800-3
Vibration to standard ...
  • EN 60721-3-2
Cooling type
  • Built-on fan
Noise emission
  • 65 dB (A)
Mechanical Data
Mounting position
  • Vertical
Housing material
  • Galvanised steel
Height dimension
  • 345 mm
Width dimension
  • 70 mm
Depth dimension
  • 243 mm
Net weight
  • 4400 g
Gross weight
  • 5500 g
