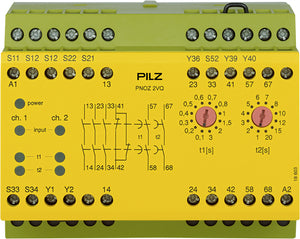

PILZ PNOZ 2VQ 24VDC 3n/o 1n/c 2n/o t

SUA00002357

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC6.5 W
Inputs
Number of Inputs2
Semiconductor Outputs
Number of Semiconductor Outputs0
Relay Outputs
Utilisation Cat. AC/DC1 Stand.EN 60947-4-1
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.8 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.8 A
Utilisation Cat. AC15/DC13 Stand.EN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.5 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL240 VAC G. P.
Safety Contacts: Pilot DutyC300, R300
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Dist. toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree Clear. & Creep.2
Protection Type
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Times
Tolerance Tv-15 %/+15 % +50 ms
Repetition Accuracy2 %
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew terminal
Terminal StyleFixed
Flexible Cond. C/S AWG Info24 - 10 AWG
Height Dimension87 mm
Width Dimension112.5 mm
Depth Dimension121 mm
Net Weight600 g
Gross Weight615 g
