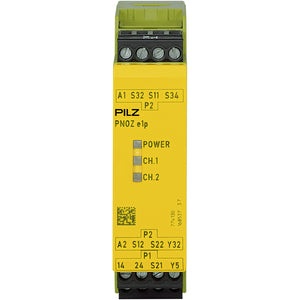

PILZ PNOZ e1p 24VDC 2so

SUA00002554

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Max. Device Circuit Breaker6 A slow / 10 A quick
Semiconductor Outputs
Utilisation Category to EN 60947-1DC-12
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93 % r. h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61326-3-1
  • EN 61000-6-4
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Overvoltage CategoryIII
Pollution Degree (Clearance & Creepage)2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew terminal
Terminal StylePlug-in
Flexible Conductor Cross-Section AWG Info24 - 12 AWG
Height Dimension90.5 mm
Width Dimension22.5 mm
Depth Dimension121 mm
Net Weight120 g
Gross Weight135 g
