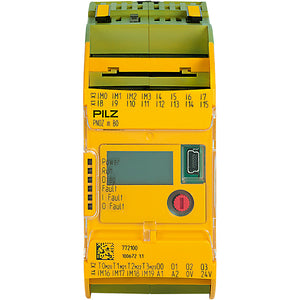

PILZ PNOZ m B0

SUA00002661

Technical Data
Electrical Data
Purpose of U1System supply
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Device Circuit Breaker U16 A, automatic, Char. B
Purpose of U2Supply of SC outputs
Supply Voltage 2 (V)24 V
Type of Supply Voltage U2DC
Tolerance of U2
Potential Isolation U2Yes
Permitted LoadsResistive, Inductive, Capacitive
Configurable Inputs/Outputs
Number of Configurable I/Os8
Potential Isolation of I/ONo
Short Circuit Protection n/safe S/C OYes
Voltage at 1 n/safe S/C OUB - 2 V at 0.1 A
Inputs
Number of Digital Inputs12
U Input to EN 61131-2 Type 124 V DC
Potential Isolation InputNo
Semiconductor Outputs
Potential Isolation of S/C OYes
S/C Output Short Circuit ProofYes
Test Clock Outputs
Number of Test Pulse Outputs4
Environmental Data
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature0 - 60 °C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-30, EN 60068-2-78
Humidity Rating93 % r. h. at 40 °C
Condensation Permitted?Not permitted
Perm. Operating Height ASL2000 m
EMC to StandardEN 61131-2
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard 115g
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type StandardEN 60529
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Potential Separation
Potential Isolation 1 BetweenSC Output and System Voltage
Type of Potential Isolation 1Basic insulation
Mechanical Data
Mounting PositionHorizontal on top hat rail
DIN-Rail Dimensions
Housing Material Lower SectionPC
Housing Material Front PlatePC
Housing Material Upper PartPC
Connection TerminalSpring-loaded terminal, Screw terminal
Terminal StylePlug-in
Flex. Cond. C/S AWG Info24 - 12 AWG
Height Dimension101.4 mm
Width Dimension45 mm
Depth Dimension120 mm
Net Weight235 g
Gross Weight250 g
