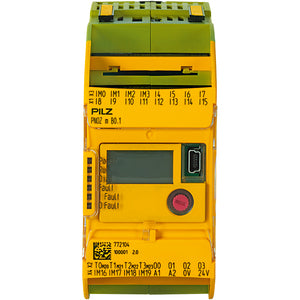

PILZ PNOZ m B0.1

SUA00002666

Technical Data
Electrical Data
Purpose of U1System supply
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Device Circuit Breaker U16 A, automatic, Char.B
Purpose of U2Supply of SC outputs
Supply Voltage 2 (V)24 V
Type of Supply Voltage U2DC
Tolerance of U2
Potential Isolation U2Yes
Permitted LoadsResistive, Inductive, Capacitive
Configurable Inputs/Outputs
Number of Configurable I/Os8
Potential Isolation of I/OsNo
Short Circuit Protection n/safe S/C OYes
Voltage at 1 n/safe S/C OUB - 2 V at 0.1 A
Inputs
Number of Digital Inputs12
U Input to EN 61131-2 Type 124 V DC
Potential Isolation InputNo
Semiconductor Outputs
Potential Isolation of S/C OYes
S/C Output Short Circuit ProofYes
Test Clock Outputs
Number of Test Pulse Outputs4
Environmental Data
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature0 - 60 °C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-30, EN 60068-2-78
Condensation Permitted?Not permitted
Perm. Operating Height ASL2000 m
EMC to StandardEN 61131-2
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard15g
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Potential Separation
Potential Isolation 1 BetweenSC output and system voltage
Type of Potential Isolation 1Basic insulation
Mechanical Data
Mounting PositionHorizontal on top hat rail
Housing Material Lower SectionPC
Housing Material Front PlatePC
Housing Material Upper PartPC
Connection TerminalSpring-loaded terminal, Screw terminal
Terminal StylePlug-in
Flex. Cond. C/S AWG Info24 - 12 AWG
Height Dimension101.4 mm
Width Dimension45 mm
Depth Dimension120 mm
Net Weight220 g
Gross Weight230 g
