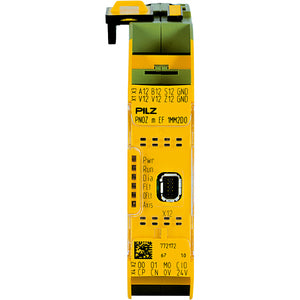

PILZ PNOZ m EF 1MM2DO

SUA00002727

Technical Data
Electrical Data
Purpose of U2Supply of SC outputs, Supply sensor evaluation
Supply voltage 2 (V)24 V
Type of supply voltage U2DC
Tolerance of U2
Potential isolation U2Yes
Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Permitted loads
  • Resistive
  • Inductive
  • Capacitive
Input Proximity Switch
Prog. mon. fun. wo hyst prox sw0.1 Hz - 5 kHz
Input Incremental Encoder
Number of incremental encoder1
Connection (increment encoder)8-pin Mini-IO female connector
Phase pos. diff. sign. inc. enc.90° ±30°
Prog. mon. fun. wo hyst. incr.0.1 Hz - 500 kHz
Semiconductor Outputs
Potential isolation of S/C OYes
S/C output short circuit proofYes
Semiconductor Outputs (Standard)
Number of auxiliary outputs1
Galv. isol. n/safe SC OYes
Short circ. prot. n/safe S/C OYes
Cascading Output as Standard
Number of cascading outputs1
Galv. isol. casc. aux. S/C OYes
Environmental Data
Ambient temperature standardEN 60068-2-14
Ambient temperature0 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standardEN 61131-2
Vibration to standardEN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Times
Reaction time over limit value1/f_actual + 10ms
Potential Separation
Potential isolation 1 betweenSensor and system voltage
Type of potential isolation 1Functional insulation
Potential isolation 2 betweenSC output and system voltage
Type of potential isolation 2Basic insulation
Mechanical Data
Mounting positionHorizontal on top hat rail
DIN-rail dimensions
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminal
  • Screw terminal
  • Spring-loaded terminal
Terminal stylePlug-in
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension101.4 mm
Width dimension22.5 mm
Depth dimension120 mm
Net weight131 g
Gross weight141 g
