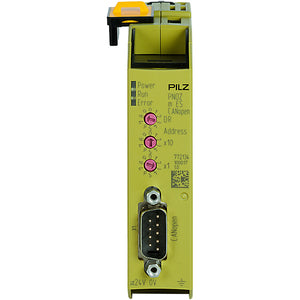

PILZ PNOZ m ES CANopen

SUA00002735

Technical Data
Electrical Data
Purpose of U1Module supply
Supply voltage (V)24 V
Type of supply voltage U1DC
Power consumption DC0.9 W
Potential isolation U1Yes
Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Fieldbus Interface
Fieldbus interfaceCANopen
Fieldbus device typeSlave
Name of fieldbus protocolCiA 301 V4.2.0
Perm. fieldbus station address0 - 99d
Selectable transmission rates
  • 10 kBit/s
  • 50 kBit/s
  • 125 kBit/s
  • 250 kBit/s
  • 500 kBit/s
  • 800 kBit/s
  • 1 MBit/s
Connection fieldbus9-pin D-Sub male connector
Galv. isolation fieldbusYes
Test voltage500 V AC
Environmental Data
Ambient temperature standardEN 60068-2-14
Ambient temperature0 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standardEN 61131-2
Vibration to standardEN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Potential Separation
Potential isolation 1 betweenFieldbus and module
Type of potential isolation 1Functional insulation
Mechanical Data
Mounting positionHorizontal on top hat rail
DIN-rail dimensions35 x 7.5 EN 50022
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminal
  • Screw terminal
  • Spring-loaded terminal
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension101.4 mm
Width dimension22.5 mm
Depth dimension115 mm
Net weight95 g
Gross weight105 g
