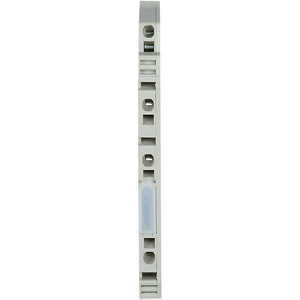

PILZ PNOZ s nIE

SUA00002344

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC0.3 W
Rated Current0.3 A
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
Vibration to StandardEN 60068-2-6
Protection Type
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Housing MaterialWemid (PA)
Connection TerminalSpring-loaded terminal
Height Dimension92 mm
Width Dimension7.5 mm
Depth Dimension64 mm
Net Weight26 g
Gross Weight32 g
