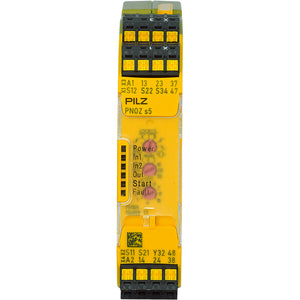

PILZ PNOZ s5 C 24VDC 2 n/o 2 n/o t

SUA00002298

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC4 W
Inputs
Number of Inputs2
Semiconductor Outputs
Number of Semiconductor Outputs1
Utilisation Category to EN 60947-1DC-12
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Contact240 V
Max. Current AC1 Safety Contact6 A
Voltage DC1 Safety Contact24 V
Max. Current DC1 Safety Contact6 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Contact230 V
Max. Current AC15 Safety Contact3 A
Voltage DC13 Safety Contact24 V
Safety Contacts: AC at UL240 VAC G.U. (same polarity)
Safety Contacts: Pilot DutyR300 / B300
Relay Contact MaterialAgCuNi
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93% r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distance toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree Clearance & Creepage2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Times
Selectable Times
  • 0.04 s
  • 0.1 s
  • 0.2 s
  • 0.3 s
  • 0.4 s
  • 0.5 s
  • 0.6 s
  • 0.7 s
  • 0.8 s
  • 1 s
  • 1.5 s
  • 2 s
  • 2.5 s
  • 3 s
  • 4 s
  • 5 s
  • 6 s
  • 7 s
  • 8 s
  • 10 s
  • 12 s
  • 14 s
  • 15 s
  • 16 s
  • 20 s
  • 25 s
  • 30 s
  • 35 s
  • 40 s
  • 50 s
  • 60 s
  • 70 s
  • 80 s
  • 90 s
  • 100 s
  • 120 s
  • 140 s
  • 150 s
  • 160 s
  • 180 s
  • 200 s
  • 210 s
  • 240 s
  • 300 s
Tolerance Tv+/-1 % + +/-20 ms
Repetition Accuracy+/-1 % + +/-20 ms
Tolerance in Event of Error+/-15 % + +/-20 ms
Max. Delay Time Formulatv + 15 % + 20 ms
Mechanical Data
Mounting PositionAny
Housing Material Lower SectionPC
Housing Material Front PlatePC
Housing Material Upper PartPC
Connection TerminalSpring-loaded terminal
Terminal StylePlug-in
Height Dimension100 mm
Width Dimension22.5 mm
Depth Dimension120 mm
Net Weight235 g
Gross Weight245 g
