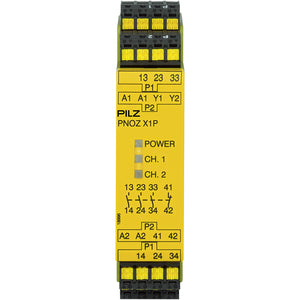

PILZ PNOZ X1P C 24VDC 3n/o 1n/c

SUA00002441

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC1.5 W
Inputs
Number of Inputs1
Semiconductor Outputs
Number of Semiconductor Outputs0
Relay Outputs
Utilisation Cat. AC/DC1 Stand.EN 60947-4-1
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.6 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.6 A
Utilisation Cat. AC15/DC13 Sta.EN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.5 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL240 VAC G. P.
Safety Contacts: Pilot DutyB300, R300
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Dist. toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree Clear. & Creep.2
Protection Type
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalSpring-loaded terminal
Terminal StylePlug-in
Height Dimension101 mm
Width Dimension22.5 mm
Depth Dimension121 mm
Net Weight205 g
Gross Weight215 g
