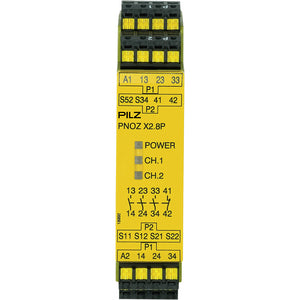

PILZ PNOZ X2.8P C 24VACDC 3n/o 1n/c

SUA00002396

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1AC/DC
Power Consumption AC5.5 VA
Power Consumption DC2.5 W
Inputs
Number of Inputs2
Semiconductor Outputs
Number of Semiconductor Outputs0
Relay Outputs
Utilisation Cat. AC/DC1 Stand.EN 60947-4-1
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.6 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.6 A
Utilisation Cat. AC15/DC13 Stand.EN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.5 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL240 VAC G.U. (same polarity)
Safety Contacts: Pilot DutyR300
Relay Contact MaterialAgCuNi
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-35 - 55 °C
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Dist. toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree Clear. & Creep.2
Protection Type
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalSpring-loaded terminal
Terminal StylePlug-in
Height Dimension101 mm
Width Dimension22.5 mm
Depth Dimension121 mm
Net Weight180 g
Gross Weight190 g
