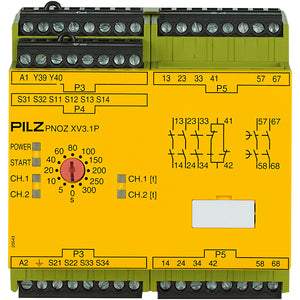

PILZ PNOZ XV3.1P 300/24-240VACDC 3no 1nc 2no

SUA00002503

Technical Data
Electrical Data
Supply Voltage (V)24 - 240 V
Type of Supply Voltage U1AC/DC
Power Consumption AC8.5 VA
Power Consumption DC5 W
Number of Inputs2
Number of Semiconductor Outputs0
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Contact240 V
Max Current AC1 Safety Contact8 A
Voltage DC1 Safety Contact24 V
Max Current DC1 Safety Contact8 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Contact230 V
Max Current AC15 Safety Contact5 A
Voltage DC13 Safety Contact24 V
Safety Contacts: AC at UL240 VAC G. P.
Safety Contacts: Pilot DutyC300, R300
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93 % r. h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Times
Selectable Times
  • 80 s
  • 60 s
  • 20 s
  • 0.3 s
  • 40 s
  • 100 s
  • 5 s
  • 200 s
  • 300 s
  • 150 s
  • 250 s
  • 10 s
Tolerance Tv-15 %/+15 % +50 ms
Repetition Accuracy2 %
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew terminal
Terminal StylePlug-in
Flexible Conductor Cross-section AWG Info24 - 12 AWG
Height Dimension94 mm
Width Dimension90 mm
Depth Dimension121 mm
Net Weight540 g
Gross Weight550 g
