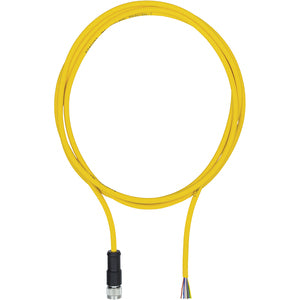

PILZ PSEN cable axial M12 8-pole 5m

SUA00003722

Technical Data
Connector type 18-pin M12 female connector
Shape of connector type 1straight
Coding of M12 connector 1A coded
Matl threaded ring conn 1CuZn nickel-plated
Contact surfaces material 1Au
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Cable type K1LiF9Y11Y
Length cable5 m
Colour cable insulation 1Yellow, similar to RAL 1003
Housing colourBlack
Material of cable insulation 1TPU / TPE-U
Trailing capability of cable 1yes
Bend radius (when laying) K15 x Ø
Max. outside diameter cable K16.1 mm
Conductor cross section0.25 mm²
Cable cross section AWG K124
Stranding K18 cores round plastic filler
Shielding K1no
Number of conductors8
Approvals for cable K1UL AWM-Style 20233, UL/CSA
Approvals for connector 1UL94 V-0
Halogen-freeyes
Oil resistanceresistant
Flame resistanceUL VW1, FT1
Housing materialPUR
Net weight250 g
Gross weight260 g
