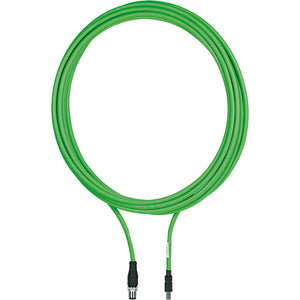

PILZ PSEN cable M12-4sm MIOsm MOVE, 5m

SUA00003656

Technical Data
Connector type 14-pin M12 male connector
Shape of connector type 1straight
Coding of M12 connector 1
Connector type 28-pin Mini-IO male connector
Shape of connector type 2straight
Matl threaded ring conn 1CuZn nickel-plated
Contact surfaces material 1CuZn, gold-plated
Contact surfaces material 2Au
Cable material K1Cu
Insulation material cable K1PE
Length cable5 m
Material shield surface K1Sn
Category of cable K1Cat5
Colour cable insulation 1Green, similar to RAL6018
Material of cable insulation 1PUR
Trailing capability of cable 1yes
Conductor cross section0.34 mm²
Cable cross section AWG K122
Stranding K1Star quad
Shielding K1yes
Type of shielding K1Wire mesh
Number of conductors4
Halogen-freeyes
Oil resistanceresistant
Net weight335 g
Gross weight340 g
