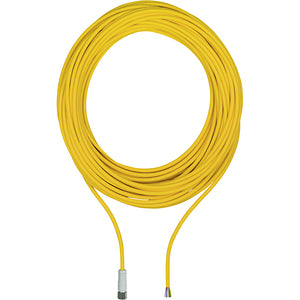

PILZ PSEN cable M12-8sf VA 30m

SUA00003856

Technical Data
Connector type 18-pin M12 female connector
Shape of connector type 1Straight
Coding of M12 connector 1A coded
Matl threaded ring conn 11.4404 stainless steel
Contact surfaces material 1Au
Seal materialEPDM
Material of socketsCuSn
Cable materialCu
Insulation material cablePVC Y17(105°)
Length cable30 m
Colour cable insulationSignal yellow RAL1003
Housing colourLight grey
Material of cable insulationPVC YM3(105°)
Trailing capability of cableYes
Bend radius (when laying)5 x Ø
Max. outside diameter cable6.2 mm
Conductor cross section0.25 mm²
Cable cross section AWG24
StrandingCores in concentric layers
ShieldingNo
Number of conductors8
Approvals for cableUL AWM-Style 2517 VW1
Halogen-freeNo
Oil resistanceResistant
Torque interlocking screwApprox. 50 cNM
Net weight1583 g
Gross weight1593 g
