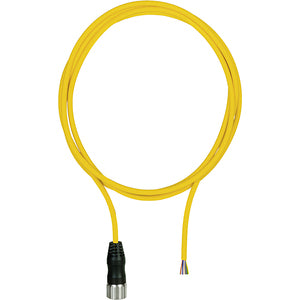

PILZ PSEN cable M23-12sf, 5m

SUA00003848

Technical Data
Connector type 112-pin M23 female connector
Shape of connector type 1Straight
Material threaded ring connector 1CuZn nickel-plated
Material of socketsCuZn, gold-plated
Cable materialCu
Insulation material cablePP (9Y)
Length cable5 m
Colour cable insulation 1Signal yellow RAL1003
Housing colourBlack
Material of cable insulation 1TPU / TPE-U
Trailing capability of cable 1Yes
Bend radius (when laying)7.5 x Ø
Max. outside diameter cable8.05 mm
Diameter data line AWG24
Stranding4x twisted pair
ShieldingYes
Type of shieldingWire mesh
Number of conductors8
Approvals for cableUL AWM-Style 20233
Halogen-freeYes
Oil resistanceResistant
Flame resistanceUL FT2
Torque interlocking screw2.0 Nm
Net weight442 g
Gross weight445 g
