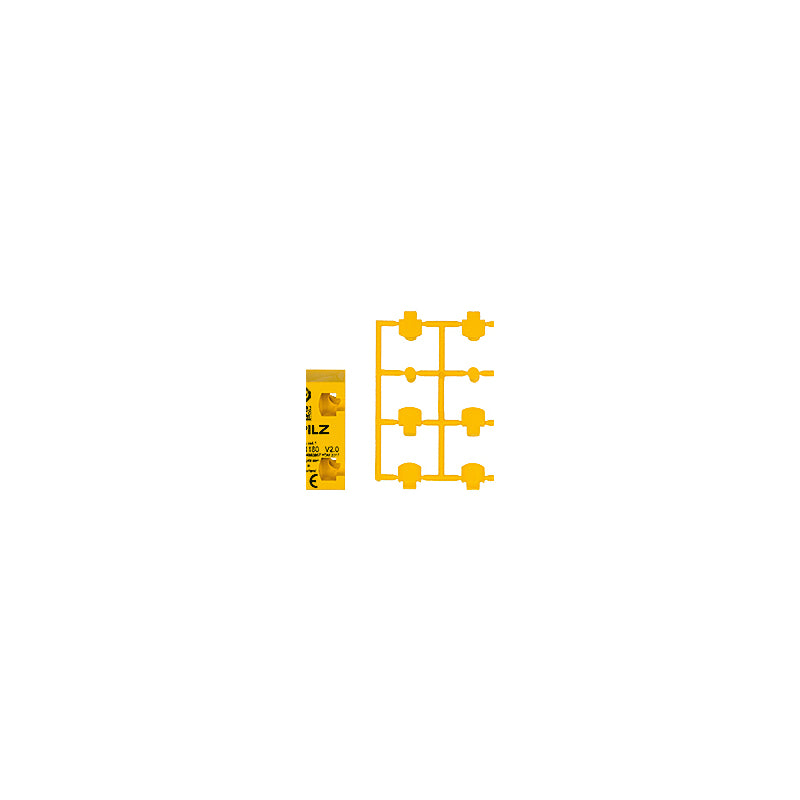

PILZ PSEN cs4.1 1 actuator

Write a review
Rs. 0.00

Technical Data
Environmental Data
Ambient temperature standard : EN 60068-2-14
Ambient temperature : -25 - 70 Ā°C
Max. ambient temp. at Hmax : +60 Ā°C
Max. ambient temp. at 2000 m : +70 Ā°C
Storage temperature standard : EN 60068-2-1/-2
Climatic suitability standard : EN 60068-2-78
Humidity rating : 93 % r. h. at 40 Ā°C
Perm. operating height ASL : 4000 m
EMC to standard : EN 60947-5-3
Vibration to standard : EN 60947-5-2
Acc. shock to standard : 30g
Protection type, housing
Mechanical Data
Housing material upper part : PBT
Height dimension : 37 mm
Width dimension : 18 mm
Depth dimension : 18 mm
Net weight : 11 g
Gross weight : 15 g
Transponder
Operating frequency : 122 kHz - 128 kHz
