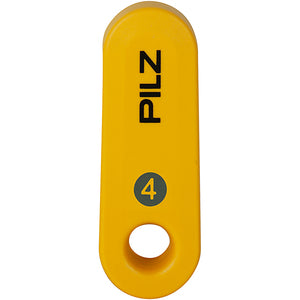

PILZ PSEN cs4.1 Key gy4

SUA00001616

Technical Data

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -10 - 55 °C
Max. ambient temp. at Hmax
Max. ambient temp. at 2000 m +55 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Protection type, housing

Mechanical Data

Housing material upper part PBT
Height dimension 15.1 mm
Width dimension 42 mm
Depth dimension 8 mm
Net weight 5 g
Gross weight 6 g

Transponder

Operating frequency 122 kHz - 128 kHz
