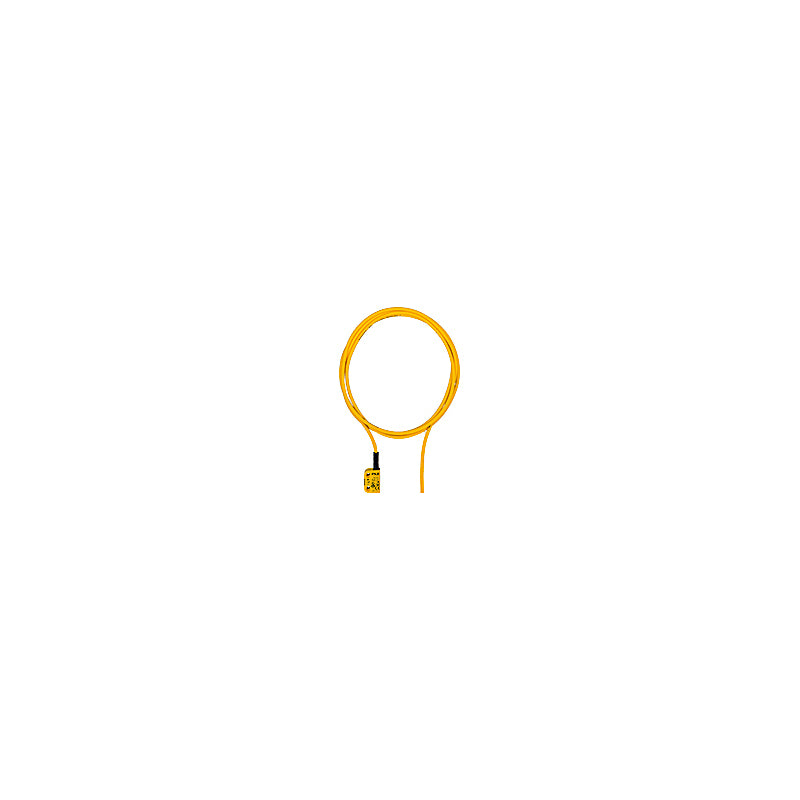

PILZ PSEN cs4.2a 1switch

SUA00001533

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 1 W

Inputs

Number of inputs 2
DC voltage at input 24 V DC

Semiconductor Outputs

Number of OSSD outputs 2
Number of signal outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation category to EN 60947-1 DC-12

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 °C to 70 °C
Max. ambient temp. at Hmax +60 °C
Max. ambient temp. at 2000 m +70 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r.h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Overvoltage category III
Pollution degree clear & creep 3
Protection type (housing)

Switching Distances

Change op. distance temp.act.1 +-0.01mm/°C
Change op. distance temp.act.2 +-0.1mm/°C
Change op. distance temp.act.3 +-0.01mm/°C
Change op. distance temp.act.4 +-0.01mm/°C

Mechanical Data

Bend radius (when laying) K1 5 x Ø
Sensor can be flush-mounted Yes, follow installation guide
Connection type 5 m cable
Cable lines Li9Y11Y 8 x 0.14 mm²
Housing material upper part PBT
Height dimension 37 mm
Width dimension 26 mm
Depth dimension 18 mm
Gross weight 245 g

Transponder

Operating frequency 122 kHz - 128 kHz
