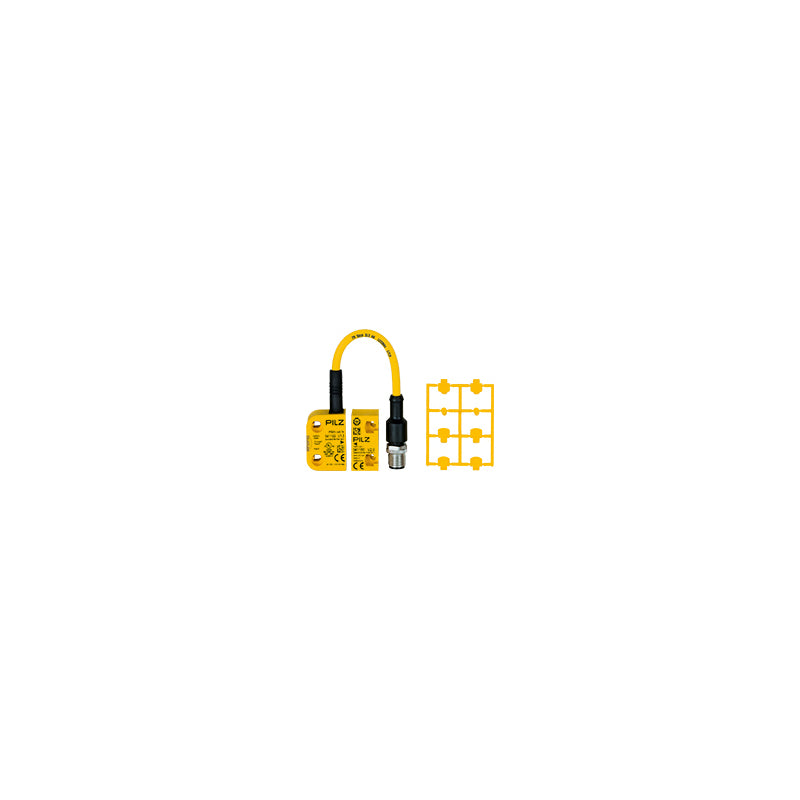

PILZ PSEN cs4.2n / PSEN cs4.1 1 Unit

Write a review
Rs. 0.00

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 1 W

Semiconductor Outputs

Number of OSSD outputs 2
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-12

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 - 70 Ā°C
Max. ambient temp. at Hmax +60 Ā°C
Max. ambient temp. at 2000 m +70 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 Ā°C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Overvoltage category III
Pollution degree clear & creep. 3

Switching Distances

Change op. dist. temp.change +-0.01mm/Ā°C

Mechanical Data

Bend radius (when laying) K1 5 x Ƙ
Type 1 actuator PSEN cs4.1
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 5-pin male
Cable lines Li9Y11Y 8 x 0.14 mmĀ²
Housing material upper part PBT
Height dimension 37 mm
Width dimension 26 mm
Depth dimension 18 mm
Net weight 50 g
Gross weight 70 g

Transponder

Operating frequency 122 kHz - 128 kHz
