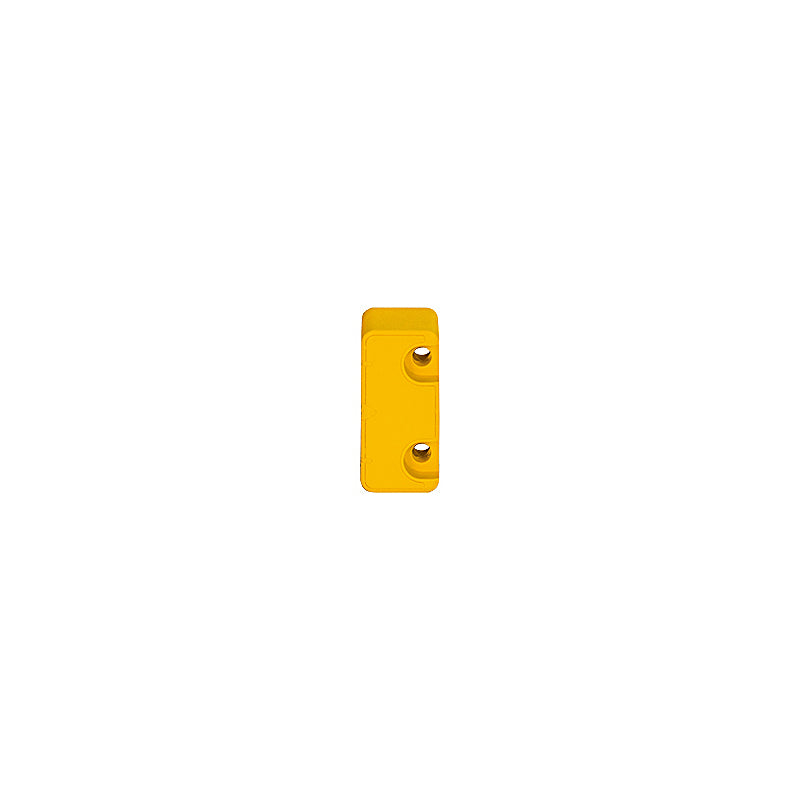

PILZ PSEN cs5.13 M12 EX 1actuator

Write a review
Rs. 0.00

Technical Data

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 - 55 Ā°C
Max. ambient temp. at Hmax +55 Ā°C
Max. ambient temp. at 2000 m +55 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-30
Humidity rating 93 % r. h. at 40 Ā°C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Protection type, housing

Mechanical Data

Housing material upper part PBT
Height dimension 18 mm
Width dimension 37 mm
Depth dimension 19 mm
Net weight 15 g
Gross weight 20 g

Transponder

Operating frequency 122 kHz - 128 kHz
