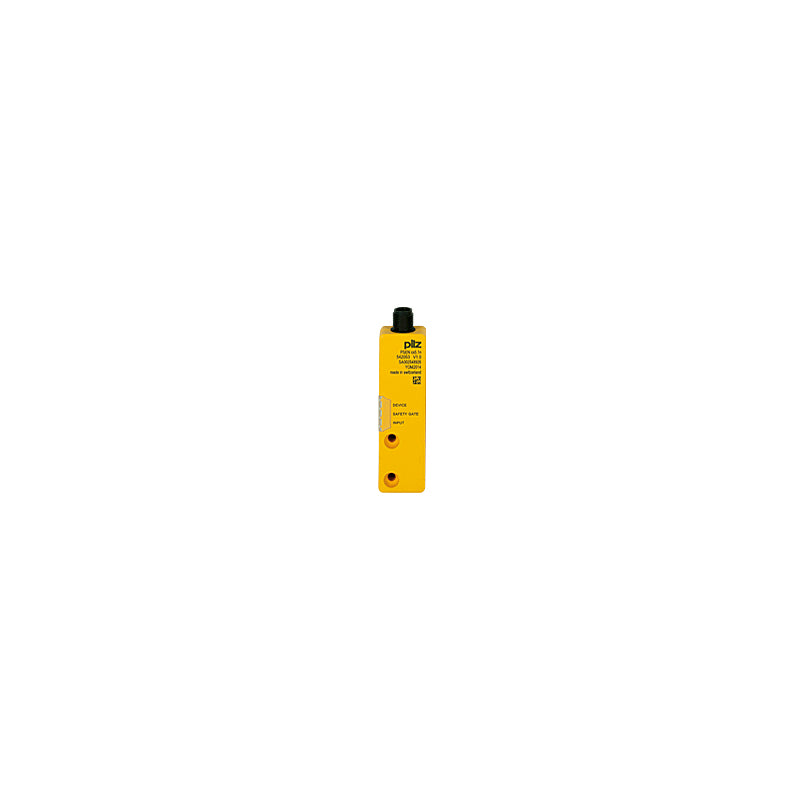

PILZ PSEN cs6.2 M12/8 1switch

SUA00001557

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 1 W
Number of inputs 2
DC voltage at input 24 V DC
Number of OSSD outputs 2
Number of sig. outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-12

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 - 70 °C
Max. ambient temp. at Hmax +60 °C
Max. ambient temp. at 2000 m +70 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-30
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Overvoltage category III
Pollution degree clear. & creep. 3
Protection type, housing

Switching Distances

Change op. distance temp.act.1 ±0.02 mm/°C
Change op. distance temp.act.2 ±0.02 mm/°C
Change op. distance temp.act.3 ±0.02 mm/°C

Mechanical Data

Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 8-pin male
Product material PBT, PA+GF, Polycarbonate
Height dimension 26.4 mm
Width dimension 101.6 mm
Depth dimension 19 mm
Net weight 68 g
Gross weight 78 g

Transponder

Operating frequency 122 kHz - 128 kHz
