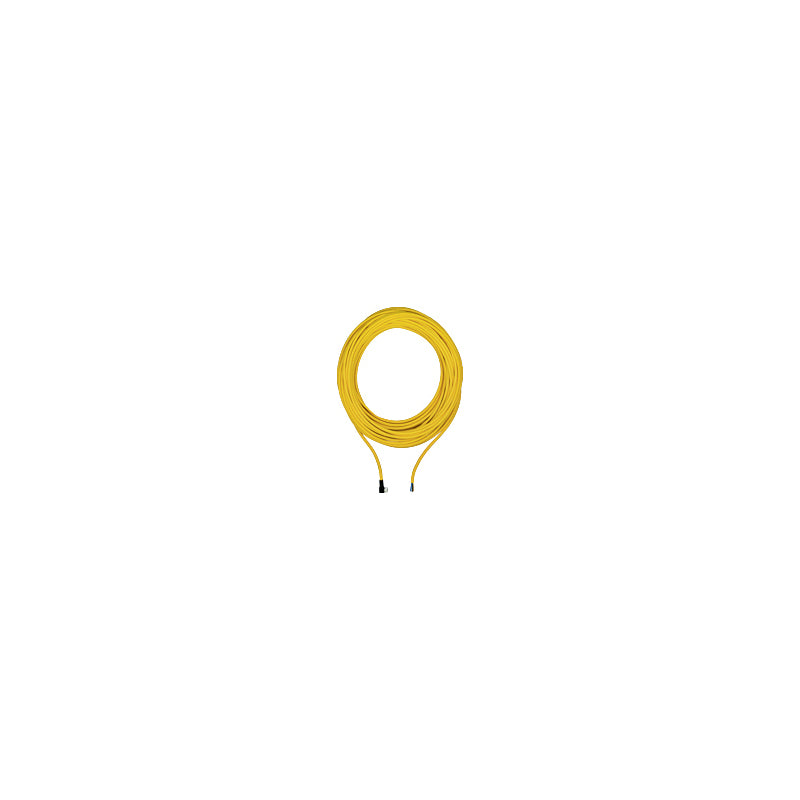

PILZ PSEN Kabel Winkel/cable angleplug 30m

SUA00003767

Technical Data
Connector type 14-pin M8 female connector
Shape of connector type 1angled
Material of threaded ring connector 1CuZn nickel-plated
Contact surfaces material 1Au
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Cable type K1LiF9Y11Y
Length cable30 m
Tolerance of cable length K1—
Colour cable insulation 1Yellow, similar to RAL 1003
Housing colourBlack
Material of cable insulation 1TPU / TPE-U, PUR
Trailing capability of cable 1yes
Bend radius (when laying) K15 x Ø
Max. outside diameter cable K14.7 mm
Conductor cross section0.25 mm²
Cable cross section AWG K124
Stranding K14 cores
Shielding K1no
Number of conductors4
Approvals for cable K1UL AWM-Style 20233, UL/CSA
Approvals for connector 1UL 94 HB
Halogen-freeyes
Oil resistanceresistant
Flame resistanceUL VW1
Housing materialPUR
Net weight922 g
Gross weight938 g
