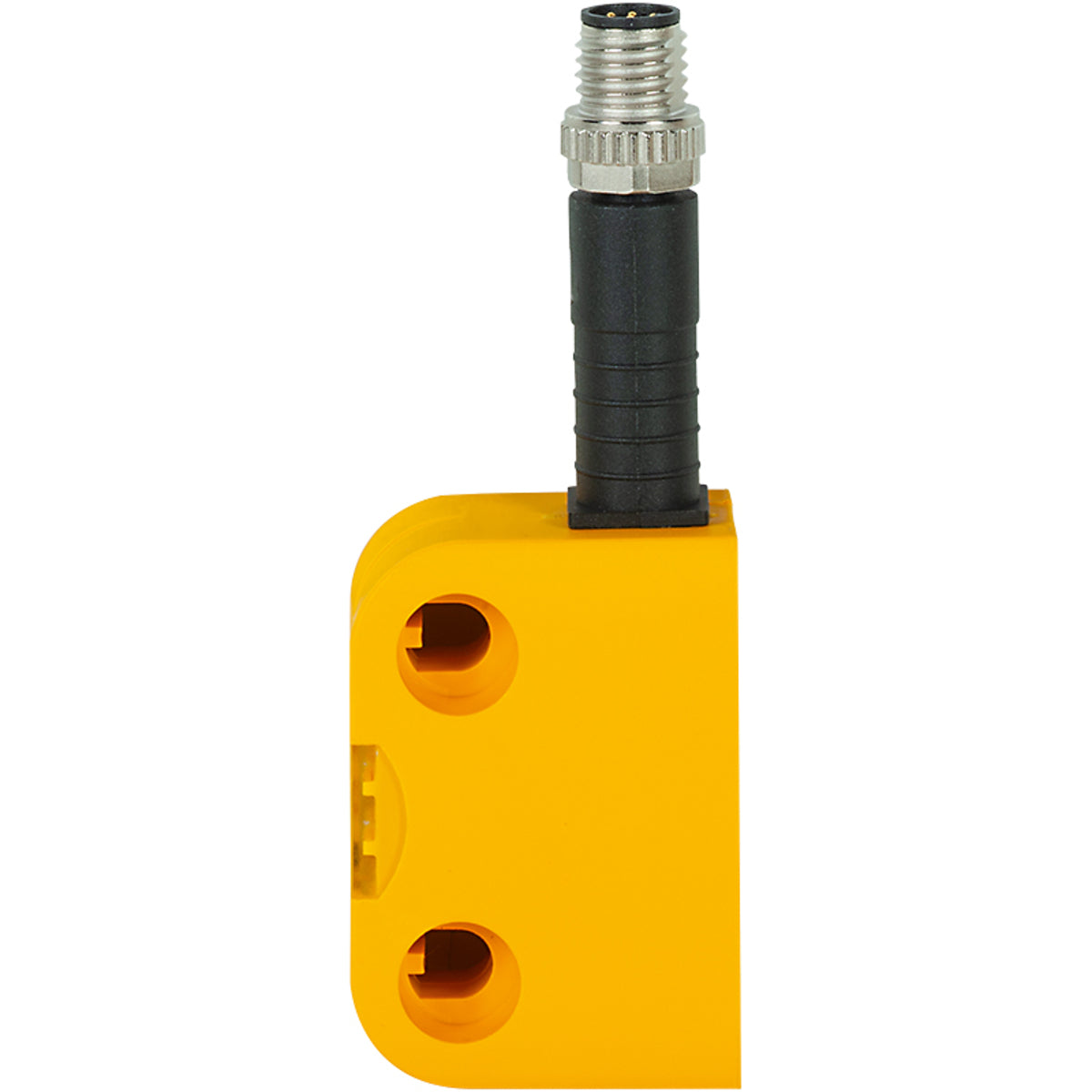

PILZ PSEN ma1.4p-59 1switch

SUA00001426

Technical Data
Electrical Data
Supply voltage (V) 24 V
Type of supply voltage U1 DC
Switching voltage 24 V
Utilisation cat. to EN 60947-1 DC-12
Environmental Data
Ambient temperature -10 to 55 °C
Max. ambient temp. at 2000 m +55 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Pollution degree 3
Mechanical Data
Type 1 actuator PSEN ma1.4-10mm
Sensor can be flush-mounted Yes, follow installation guide
Connection type M8, 8-pin male
Housing material upper part PBT
Height dimension 37 mm
Width dimension 26.4 mm
Depth dimension 18 mm
Net weight 35 g
Gross weight 42 g
