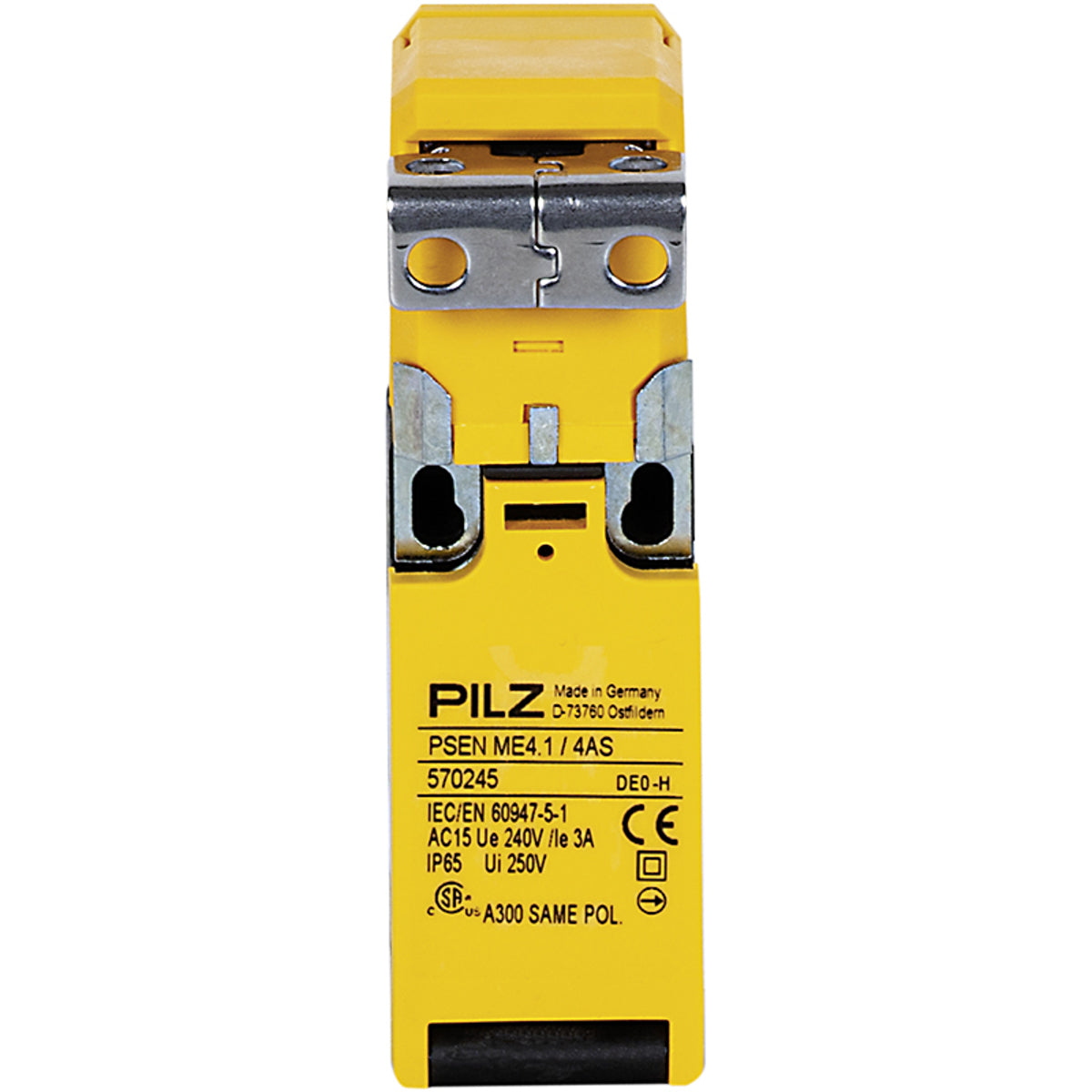

PILZ PSEN me4.1 / 4AS

SUA00001324

Technical Data
Relay Outputs
Utilisation cat. AC/DC1 stand. EN 60947-4-1
Voltage AC1 safety cont. 240 V
Max. current AC1 safety cont. 10 A
Utilisation cat. AC15/DC13sta. EN 60947-5-1
Voltage AC15 safety cont. 240 V
Max. current AC15 safety cont. 3 A
Environmental Data
Ambient temperature -30 - 80 °C
Protection type, housing (To be defined)
Mechanical Data
Connection terminal Screw terminal
Terminal style Fixed
Height dimension 100 mm
Width dimension 30 mm
Depth dimension 30.5 mm
Net weight 101 g
Gross weight 144 g
