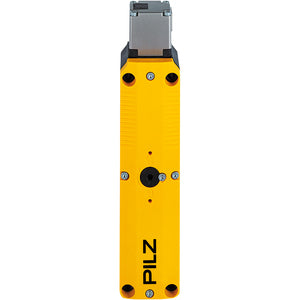

PILZ PSEN me5S NC.NC-NC-NC 1switch

SUA00001865

Technical Data
Electrical Data
Supply Voltage (V) 24 V
Type of Supply Voltage U1 AC/DC
Relay Outputs
Utilisation Cat. AC15/DC13 Sta. EN 60947-5-1
Voltage AC15 Safety Cont. 240 V
Max. Current AC15 Safety Cont. 1.5 A
Voltage DC13 Safety Cont. 250 V
Environmental Data
Ambient Temperature -25 - 55 °C
Overvoltage Category II
Protection Type, Housing
Mechanical Data
Escape Release Available Yes
Holding Force 1500 N
Height Dimension 192 mm
Width Dimension 42 mm
Depth Dimension 44 mm
Net Weight 489 g
Gross Weight 541 g
