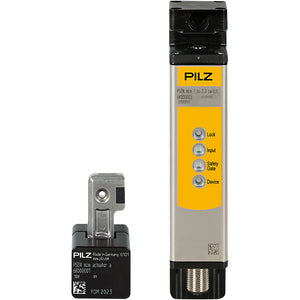

PILZ PSEN mlm 1 ba 2.2 unit a

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V) 24 V
Type of Supply Voltage U1 DC
Type of Power Supply for U1 SELV/PELV
Power Consumption DC 0.5 W
Inputs
Number of Inputs 2
DC Voltage at Input 24 V DC
Potential Isolation Inputs No
Semiconductor Outputs
Number of OSSD Outputs 2
Number of Signal Outputs 1
Potential Isolation (Short Circuit) No
Short Circuit Proof Yes
Utilization Category to EN 60947-1 DC-12
Environmental Data
Ambient Temperature Standard EN 60068-2-14
Ambient Temperature -10 - 60 °C
Storage Temperature Standard EN 60068-2-1/-2
Climatic Suitability Standard EN 60068-2-78
Humidity Rating 93% r.h. at 40°C
Perm. Operating Height ASL 2000 m
EMC to Standard EN 301489-1 V2.1.1, EN 55011: Class A, EN 60947-5-3, EN 60947-5-2
Vibration to Standard EN 60947-5-2
Shock to Standard 30g
Overvoltage Category II
Pollution Degree Clearance & Creepage 2
Protection Type, Housing
UL Enclosure Type Type 1
Mechanical Data
Escape Release Available No
Max. Vertical Offset
Max. Angular Offset Round X Axis
Max. Angular Offset Round Y Axis
Max. Angular Offset Round Z Axis
Max. Offset Closing Direction
Type 1 Actuator
Connection Type M12, 8-pin male
Max. Cable Length 45 m
Product Material Galvanized Steel, Stainless Steel, Plastic
Height Dimension 157.5 mm
Width Dimension 30.4 mm
Depth Dimension 30.4 mm
Net Weight 600 g
Gross Weight 610 g
Transponder
Operating Frequency —
