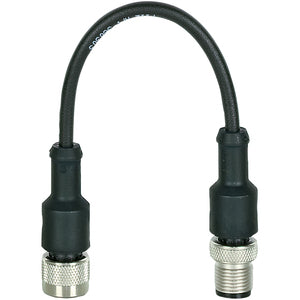

PILZ PSEN op 2H Receiver adapter

Write a review
Rs. 0.00

Technical Data
Connector type 15-pin M12 female connector
Shape of connector type 1Straight
Coding of M12 connector 1A coded
Connector type 25-pin M12 male connector
Shape of connector type 2Straight
Coding of M12 connector 2A coded
Contact surfaces material 1Au
Contact surfaces material 2Au
Material of pinsCuZn
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PVC
Cable type K1LiY11Y
Length cable0.1 m
Colour cable insulation 1Black
Housing colourBlack
Material of cable insulation 1PUR
Trailing capability of cable 1No
Max. outside diameter cable K15.2 mm
Conductor cross section0.25 mmĀ²
Cable cross section AWG K124
Stranding K15 cores round filler
Shielding K1No
Number of conductors5
Halogen-freeYes
Oil resistanceResistant
Housing materialPUR
Net weight25 g
Gross weight40 g
