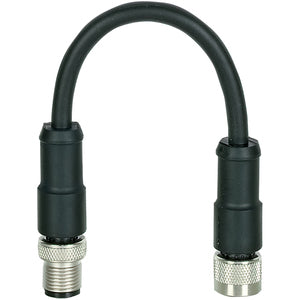

PILZ PSEN op M12 V2 Receiver adapter

SUA00003881

Technical Data
Connector type 18-pin M12 female connector
Shape of connector type 1Straight
Coding of M12 connector 1A coded
Connector type 25-pin M12 male connector
Shape of connector type 2Straight
Coding of M12 connector 2A coded
Contact surfaces material 1Au
Contact surfaces material 2Au
Material of pinsCuZn
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Length cable0.1 m
Material shield surface K1Sn
Colour cable insulation 1Black
Housing colourBlack
Material of cable insulation 1TPU 11YH1
Trailing capability of cable 1Yes
Bend radius (when laying) K15 x Ø
Max. outside diameter cable K15.9 mm
Conductor cross section0.25 mm²
Cable cross section AWG K124
Shielding K1Yes
Type of shielding K1Wire mesh
Number of conductors7
Halogen-freeYes
Oil resistanceResistant
Flame resistanceUL FT2
Housing materialPUR
Net weight29 g
Gross weight44 g
