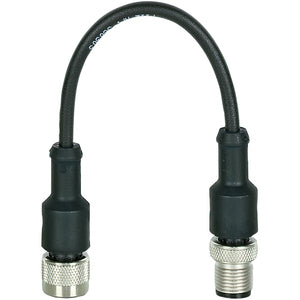

PILZ PSEN op1.2 adapter

SUA00003878

Technical Data
Connector type 14-pin M12 female connector
Shape of connector type 1Straight
Coding of M12 connector 1A coded
Connector type 25-pin M12 male connector
Shape of connector type 2Straight
Coding of M12 connector 2A coded
Contact surfaces material 1Au
Contact surfaces material 2Au
Material of pinsCuZn
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PVC
Cable type K1LifY-11Y
Length cable0.1 m
Colour cable insulation 1Black
Housing colourBlack
Material of cable insulation 1PUR
Trailing capability of cable 1No
Max. outside diameter cable K14.7 mm
Conductor cross section0.34 mm²
Cable cross section AWG K122
Shielding K1No
Number of conductors3
Halogen-freeYes
Oil resistanceResistant
Housing materialPUR
Net weight24 g
Gross weight39 g
