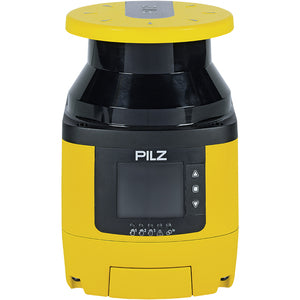

PILZ PSEN sc S 3.0 08-12

SUA00002240

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC8 W
Optical Data
Used Wavelength Range905 nm
Scanning Area275°
Max. Opening Angle Vertical0.12°
Angular Resolution0.1°
Inputs
Signal Level at Input at 0< 5 V
DC Voltage at Input24 V
Semiconductor Outputs
Current "0" S/C O PSENscan< 700 µA
Ethernet Interface
Connector Type ETHERNET Int.M12x1, 4-pin, D-code
Ethernet Transmission Rate100 MBit/s
CANopen Interface
Number of Ethernet Interfaces1
Environmental Data
Ambient Temperature-10 - 50 °C
Humidity RatingMax. 95 %
Condensation Permitted?Not permitted
Perm. Operating Height ASL2000 m
Vibration to StandardEN 60068-2-6
Acceleration Shock to Standard10g
Protection Type, Housing
Times
Reaction Time62 ms
Rotation Time30 ms
Mechanical Data
Housing MaterialAluminium
Housing Material Upper PartPC
Material Front ScreenPMMA
Height Dimension152 mm
Width Dimension102 mm
Depth Dimension112.5 mm
Net Weight1530 g
Gross Weight2140 g
