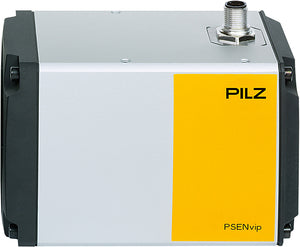

PILZ PSENvip E

SUA00002215

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC5 W
Optical Data
Type of Light SourceHigh Power LED
Used Wavelength Range510 - 550 nm
Inputs
Number of Inputs2
DC Voltage at Input24 V DC
Potential Isolation InputsNo
Environmental Data
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature0 - 50 °C
Storage Temperature Standard EN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r. h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard...
  • EN 61496-1
  • EN 61000-6-4
Vibration to Standard...EN 60068-2-6
Acc. Shock to Standard110g
Protection Type StandardEN 60529
Protection Type, Housing
UL Enclosure Type1
Mechanical Data
Connection TypeM12
Cable LinesLiYY 4 x 0.25 mm²
Max. Cable Length75 m
Housing Material Upper PartAluminium
Height Dimension90 mm
Width Dimension95 mm
Depth Dimension136 mm
Net Weight1000 g
Gross Weight1250 g
