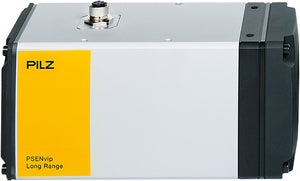

PILZ PSENvip R LR

SUA00002217

Technical Data
Electrical Data
Supply Voltage (V)5 V
Type of Supply Voltage U1DC
Power Consumption DC0.8 W
Optical Data
Used Wavelength Range510 - 550 nm
Environmental Data
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature0 - 50 °C
Storage Temperature Standard EN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r. h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard...
  • EN 61496-1
  • EN 61000-6-4
Vibration to Standard...EN 60068-2-6
Acc. Shock to Standard110g
Protection Type StandardEN 60529
Protection Type, Housing
UL Enclosure Type1
Times
Reaction Time4.65 ms
Mechanical Data
Connection TypeM12 4-pin
Cable LinesCable sets
Max. Cable Length20 m
Housing Material Upper PartAluminium
Height Dimension90 mm
Width Dimension95 mm
Depth Dimension192 mm
Net Weight2410 g
Gross Weight2680 g
