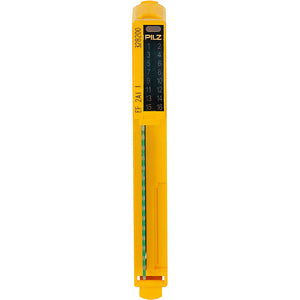

PILZ PSS u2 EF 2AI I

SUA00003064

Technical Data
Analog Inputs
Number of Analog Inputs2
Type of Analog InputsCurrent
Analog Input Signal Type 1Differential Input
Analog Input Signal Range 10 - 25.6 mA
Type of Input FilterRC Filter (1st Order)
R Analog Current I/P+ Threshold V156 Ohm + ca. 1.6V Threshold V
Resolution of Analog Inputs15 Bit
Monotony without Error CodesYes
Conversion Method Analog I/PSuccessive Approximation
Environmental Data
Climatic Suitability to
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature0 - 60 °C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?No
Perm. Operating Height ASL2000 m
EMC to Standard
  • EN 61131-2 (Zone B)
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard 1150 m/s²
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type StandardEN 60529
Potential Separation
Potential Isolation 1 BetweenAnalog I/P and Module Supply
Type of Potential Isolation 1Functional Insulation
Potential Isolation 2 BetweenAnalog I/P and Periphery Supply
Type of Potential Isolation 2Functional Insulation
Potential Isolation 3 BetweenPeriphery and Module Supply
Type of Potential Isolation 3Functional Insulation
Mechanical Data
Housing MaterialPC
Terminal StylePlug-in
Height Dimension110.8 mm
Width Dimension12.5 mm
Depth Dimension72.5 mm
Net Weight41 g
Gross Weight58 g
